PS2381-1 - 4-PIN LSOP PHOTOCOUPLER

Renesas

📥 Download Datasheet

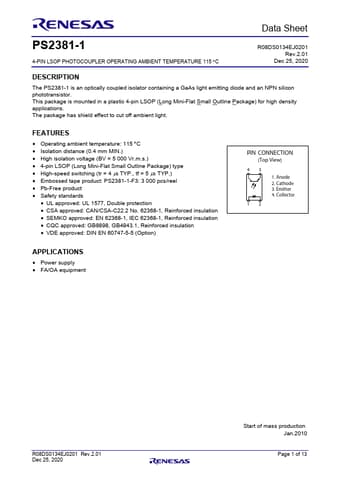

PS2381-1 Datasheet Preview — Preview of PS2381-1 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	PS2381-1
Manufacturer	Renesas
File Size	5.15 MB
Description	4-PIN LSOP PHOTOCOUPLER
Datasheet	PS2381-1-Renesas.pdf

PS2381-1 Product details

Description

The PS2381-1 is an optically coupled isolator containing a GaAs light emitting diode and an NPN silicon phototransistor.

Features

Operating ambient temperature: 115 C.
Isolation distance (0.4 mm MIN. ).
High isolation voltage (BV = 5 000 Vr. m. s. ).
4-pin LSOP (Long Mini-Flat Small Outline Package) type.
High-speed switching (tr = 4 s TYP. , tf = 5 s TYP. ).
Embossed tape product: PS2381-1-F3: 3 000 pcs/reel.
Pb-Free product.
Safety standards.
UL approved: UL 1577, Double protection.
CSA approved: CAN/CSA-C22.2 No. 62368-1, Reinforced insulation.
SEMKO approved: EN 6236.
