PA2423L - 2.4 GHz Bluetooth Class 1 Power Amplifier

SiGe Semiconductor Inc.

📥 Download Datasheet

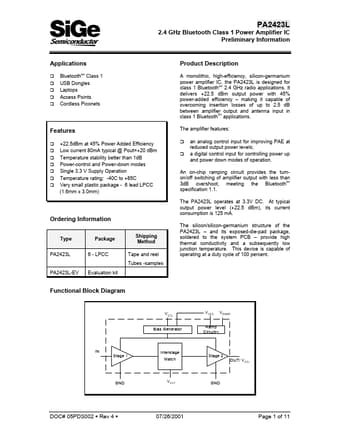

PA2423L Datasheet Preview — Preview of PA2423L PDF

Datasheet Details

Part number	PA2423L
Manufacturer	SiGe Semiconductor Inc.
File Size	367.62 KB
Description	2.4 GHz Bluetooth Class 1 Power Amplifier
Datasheet	PA2423L_SiGeSemiconductorInc..pdf

PA2423L Product details

Description

A monolithic, high-efficiency, silicon-germanium power amplifier IC, the PA2423L is designed for class 1 Bluetoothtm 2.4 GHz radio applications. making it capable of overcoming insertion losses of up to 2.5 dB between amplifier output and antenna input in tm class 1 Bluetooth applications.

Features

an analog control input for improving PAE at reduced output power levels; a digital control input for controlling power up and power down modes of operation. An on-chip ramping circuit provides the turnon/off switching of amplifier output with less than 3dB overshoot, meeting the Bluetoothtm specification 1.1. The PA2423L operates at 3.3V DC. At typical output power level (+22.5 dBm), its current consumption is 125 mA. The silicon/silicon-germanium structure of the PA2423L.
and its exp.
