SF6772 - CV/CC Power Switch

Description

SF6772 is a high performance, highly integrated QR (Quasi Resonant Mode) and Primary Side Regulation (PSR) power switch for offline small power converter applications.

Features

  • Meet EPS Level 6.
  • Built-in 600V Power MOSFET.
  • Proprietary super-QR/PSRTM (Quasi- Resonant & Primary Side Regulation) Control for High Efficiency and Low EMI.
  • Proprietary Cable Drop Compensation.
  • Max. Frequency Clamping to Limit Power MOSFET Vds Spike @ Output Short Circuit.
  • Less than 70mW Standby Power.
  • ±5% CC and CV Precision.
  • Multi-Mode Control.
  • Cycle-by-Cycle Current Limiting.
  • Leading Edge Blanking (LEB).
  • Soft Start.
  • Output Over Vol.

📥 Download Datasheet

Datasheet Details

Part number SF6772
Manufacturer SiFirst
File Size 486.31 KB
Description CV/CC Power Switch
Datasheet download datasheet SF6772 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SF67 6.0 AMP SUPER FAST RECTIFIERS Formosa MS
SF67 (SF61 - SF68) SUPERFAST RECOVERY RECTIFIERS HY ELECTRONIC
SF67 (SF61 - SF68) Super Fast Rectifiers Taiwan Semiconductor
SF67 6.0 AMP SUPER FAST RECTIFIERS GW
SF67 Super Fast Plastic Rectifiers LRC

Other Datasheets by SiFirst

Part Number Description
SF6772S Power MOSFET
SF6771S CV/CC Controller
SF6777 CV/CC Power Switch
SF6778S Power MOSFET
SF6761S CV/CC Controller

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

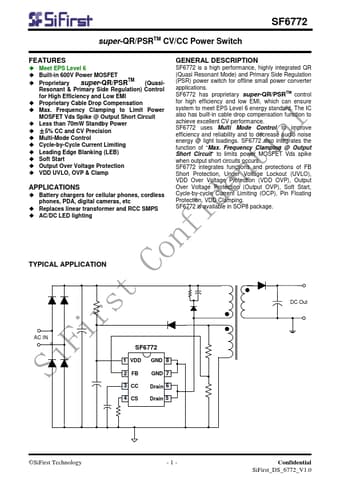

super-QR/PSRTM CV/CC Power Switch SF6772 FEATURES ◆ Meet EPS Level 6 ◆ Built-in 600V Power MOSFET ◆ Proprietary super-QR/PSRTM (Quasi- Resonant & Primary Side Regulation) Control for High Efficiency and Low EMI ◆ Proprietary Cable Drop Compensation ◆ Max.
