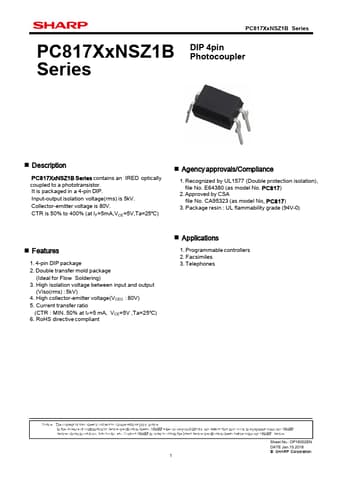

PC817XNNSZ1B Datasheet (Sharp) - DIP 4pin Photocoupler

PC817XNNSZ1B, DIP 4pin Photocoupler

PC817XxNSZ1B Series contains an IRED optically coupled to a phototransistor.

It is packaged in a 4-pin DIP.

Input-output isolation voltage(rms) is 5kV.

Collector-emitter voltage is 80V.

CTR is 50% to 400% (at IF=5mA,VCE=5V,Ta=25℃) * Agency approvals/Compliance 1.

Recognized by UL1577 (Double pr

PC817XNNSZ1B Features

* 1. 4-pin DIP package 2. Double transfer mold package (Ideal for Flow Soldering) 3. High isolation voltage between input and output (Viso(rms) : 5kV) 4. High collector-emitter voltage(VCEO : 80V) 5. Current transfer ratio (CTR : MIN. 50% at IF=5 mA, VCE=5V ,Ta=25℃) 6. RoHS directive compliant
