PC817D, PC817 - PHOTOTRANSISTOR PHOTOCOUPLER

Name: PC817D
SKU: PC817D-1462437

HOTCHIP

📥 Download Datasheet

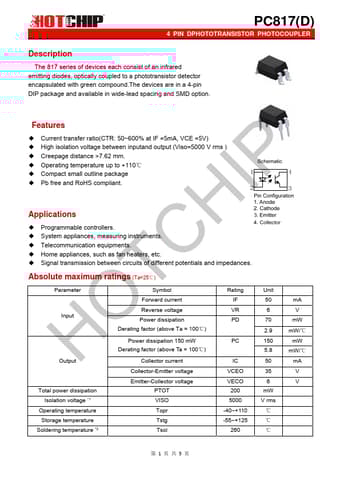

PC817D Datasheet Preview — This datasheet PDF includes multiple part numbers: PC817D, PC817. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	PC817D, PC817
Manufacturer	HOTCHIP
File Size	846.16 KB
Description	PHOTOTRANSISTOR PHOTOCOUPLER
Datasheet	PC817-HOTCHIP.pdf
Note	This datasheet PDF includes multiple part numbers: PC817D, PC817. Please refer to the document for exact specifications by model.

PC817D Product details

Description

The 817 series of devices each consist of an infrared emitting diodes, optically coupled to a phototransistor detector encapsulated with green compound.The devices are in a 4-pin DIP package and available in wide-lead spacing and SMD option.

Features

Current transfer ratio(CTR: 50~600% at IF =5mA, VCE =5V).
High isolation voltage between inputand output (Viso=5000 V rms ).
Creepage distance >7.62 mm.
Operating temperature up to +110℃.
Compact small outline package IP.
Pb free and RoHS compliant.
