PC3SF11YVZ - Phototriac Coupler

Sharp

The PC3SF11YVZ by Sharp is a Phototriac Coupler. Below is the official datasheet preview.

📥 Download Datasheet

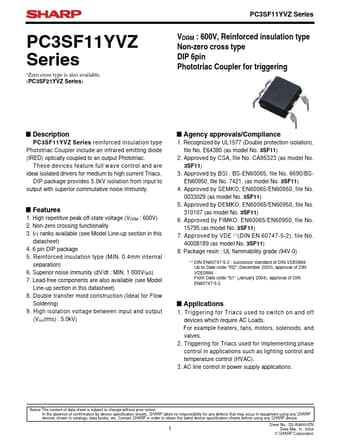

PC3SF11YVZ Phototriac Coupler by Sharp - Datasheet Preview — Official preview page of the **PC3SF11YVZ** Phototriac Coupler datasheet (Sharp).

Datasheet Details

Part number	PC3SF11YVZ
Manufacturer	Sharp
File Size	245.27 KB
Description	Phototriac Coupler
Datasheet	PC3SF11YVZ-Sharp.pdf
Additional preview pages of the PC3SF11YVZ datasheet.

PC3SF11YVZ Product details

Description

PC3SF11YVZ Series reinforced insulation type Phototriac Coupler include an infrared emitting diode (IRED) optically coupled to an output Phototriac. Agency approvals/Compliance 1. Recognized by UL1577 (Double protection isolation), file No.E64380 (as model No.3SF11) 2. Approved by CSA

Features

igh repetitive peak off-state voltage (VDRM : 600V) 2. Non-zero crossing functionality 3. IFT ranks available (see Model Line-up section in this datasheet) 4. 6 pin DIP package 5. Reinforced insulation type (MIN. 0.4mm internal separation) 6. Superior noise immunity (dV/dt : MIN. 1 000V/µs) 7. Lead-free components are also available (see Model Line-up section in this datasheet) 8. Double transfer mold construction (Ideal for Flow Soldering) 9. High isolation voltage between input and output (Vis.
