PC3SF21YWP, PC3SF21YVZ - DIP 6pin Phototriac Coupler for triggering

SHARP

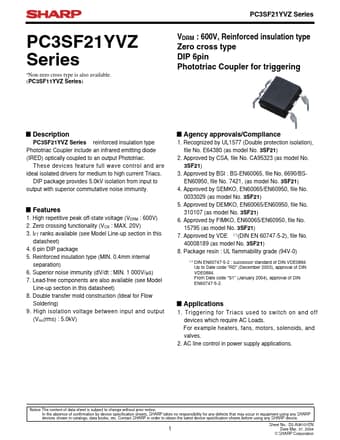

The PC3SF21YWP by SHARP is a DIP 6pin Phototriac Coupler for triggering. Below is the official datasheet preview.

📥 Download Datasheet

PC3SF21YWP DIP 6pin Phototriac Coupler for triggering by SHARP - Datasheet Preview — Official preview page of the **PC3SF21YWP** DIP 6pin Phototriac Coupler for triggering datasheet (SHARP).

Datasheet Details

Part number	PC3SF21YWP, PC3SF21YVZ
Manufacturer	SHARP
File Size	320.94 KB
Description	DIP 6pin Phototriac Coupler for triggering
Datasheet	PC3SF21YVZ-SHARP.pdf
Note	This datasheet PDF includes multiple part numbers: PC3SF21YWP, PC3SF21YVZ. Please refer to the document for exact specifications by model.
Additional preview pages of the PC3SF21YWP datasheet.

PC3SF21YWP Product details

Description

PC3SF21YVZ Series reinforced insulation type Phototriac Coupler include an infrared emitting diode (IRED) optically coupled to an output Phototriac. Agency approvals/Compliance 1. Recognized by UL1577 (Double protection isolation), file No.E64380 (as model No.3SF21) 2. Approved by CSA

Features

igh repetitive peak off-state voltage (VDRM : 600V) 2. Zero crossing functionality (VOX : MAX. 20V) 3. IFT ranks available (see Model Line-up section in this datasheet) 4. 6 pin DIP package 5. Reinforced insulation type (MIN. 0.4mm internal separation) 6. Superior noise immunity (dV/dt : MIN. 1 000V/µs) 7. Lead-free components are also available (see Model Line-up section in this datasheet) 8. Double transfer mold construction (Ideal for Flow Soldering) 9. High isolation voltage between input an.
