GP2Y0D810Z0F

The GP2Y0D810Z0F is Distance Measuring Sensor Unit designed by Sharp.

Product Overview

Sharp

Datasheet Details

Part number	GP2Y0D810Z0F
Manufacturer	Sharp
File Size	303.41 KB
Description	Distance Measuring Sensor Unit
Datasheet	GP2Y0D810Z0F-Sharp.pdf

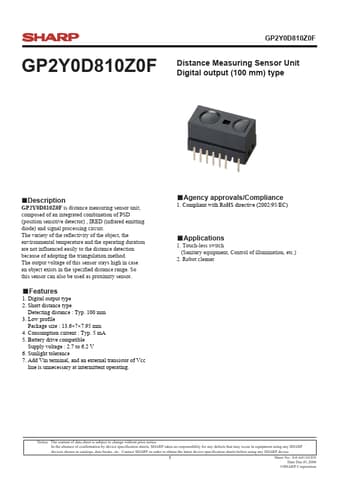

Additional preview pages of the GP2Y0D810Z0F datasheet.

Product details

Description

GP2Y0D810Z0F is distance measuring sensor unit, composed of an integrated combination of PSD (position sensitive detector) , IRED (infrared emitting diode) and signal processing circuit.

Features

1. Digital output type 2. Short distance type Detecting distance : Typ. 100 mm 3. Low profile Package size : 13.6×7×7.95 mm 4. Consumption current : Typ. 5 mA 5. Battery drive compatible Supply voltage : 2.7 to 6.2 V 6. Sunlight tolerance 7. Add Vin terminal, and an external transistor of Vcc line is unnecessary at intermittent operating.
Agency approvals/Compliance 1. Compliant with RoHS directive (2002/95/EC).
