GP2Y0D310K - Distance Measuring Sensor Unit

Sharp

The GP2Y0D310K by Sharp is a Distance Measuring Sensor Unit. Below is the official datasheet preview.

Datasheet Details

Part number	GP2Y0D310K
Manufacturer	Sharp
File Size	421.19 KB
Description	Distance Measuring Sensor Unit
Datasheet	GP2Y0D310K-Sharp.pdf

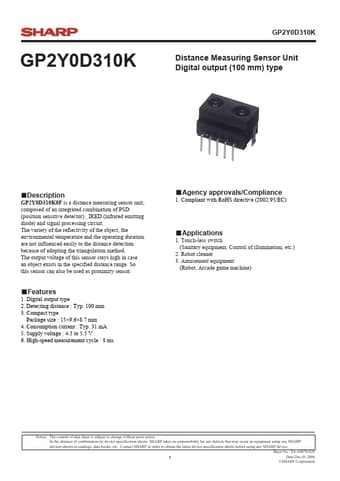

Additional preview pages of the GP2Y0D310K datasheet.

GP2Y0D310K Product details

Description

GP2Y0D310K0F is a distance measuring sensor unit, composed of an integrated combination of PSD (position sensitive detector) , IRED (infrared emitting diode) and signal processing circuit.

Features

1. Digital output type 2. Detecting distance : Typ. 100 mm 3. Compact type Package size : 15×9.6×8.7 mm 4. Consumption current : Typ. 31 mA 5. Supply voltage : 4.5 to 5.5 V 6. High-speed measurement cycle : 8 ms.
Agency approvals/Compliance 1. Compliant with RoHS directive (2002/95/EC).
