S202S02 - SIP Type SSR for Medium Power Control

Datasheet Summary

Description

S102S02 Series and S202S02 Series Solid State Relays (SSR) are an integration of an infrared emitting diode (IRED), a Phototriac Detector and a main output Triac.

Features

  • Output current, IT(rms)≤8.0A 2. Zero crossing functionary (VOX : MAX. 35V) 3. 4 pin SIP package 4. High repetitive peak off-state voltage (VDRM : 600V, S202S02 Series) (VDRM : 400V, S102S02 Series) 5. High isolation voltage between input and output (Viso(rms) : 4.0kV) 6. Screw hole for heat sink.
  • Agency approvals/Compliance 1. Recognized by UL508, file No. E94758 (as models No. S102S02/S202S02) 2. Approved by CSA 22.2 No.14, file No. LR63705 (as models No. S102S02/S202S02) 3. Package resi.

📥 Download Datasheet

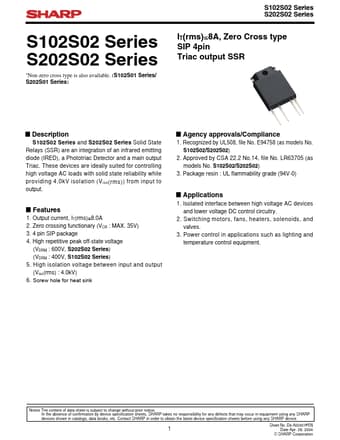

Datasheet preview – S202S02

Datasheet Details

Part number S202S02
Manufacturer Sharp Electrionic Components
File Size 684.24 KB
Description SIP Type SSR for Medium Power Control
Datasheet download datasheet S202S02 Datasheet
Additional preview pages of the S202S02 datasheet.

📁 Similar Datasheet

  • S2020 - Silicon Power Rectifier (Microsemi Corporation)
  • S2025 - 32 x 32 1.5 GBIT/S DIFFERENTIAL CROSSPOINT SWITCH (AMCC)
  • S202DS4 - Solid state relay (ETC)
  • S20 - Silicon Power Rectifier (Microsemi Corporation)
  • S2000 - Silicon NPN Transistor (Toshiba)
  • S2000 - NPN Transistor (INCHANGE)
  • S2000 - SILICON POWER TRANSISTOR (SavantIC)
  • S2000A - Silicon NPN Transistor (Toshiba)
  • S2000A - SILICON POWER TRANSISTOR (SavantIC)
  • S2000AF - High voltage NPN Power transistor (ST Microelectronics)
Other Datasheets by Sharp Electrionic Components
  • S202S01 - SIP Type SSR for Medium Power Control
  • S202S03 - SIP Type SSR with Mounting Capability for External Heat Sink
  • S202S11 - SIP Type SSR with Snubber Circuit and Mouning Capability for External Heat Sink
  • S202S12 - SIP Type SSR with Snubber Circuit and Mouning Capability for External Heat Sink
  • S202SE1 - SIP Type SSR for Medium Power Control
  • S202SE2 - SIP Type SSR for Medium Power Control
  • S202T01 - Low Height Type Solid State Relays
  • S202T02 - Low Height Type Solid State Relays

Full PDF Text Transcription

Click to expand full text
S102S02 Series S202S02 Series ∗Non-zero cross type is also available. (S102S01 Series/ S202S01 Series) S102S02 Series S202S02 Series IT(rms)≤8A, Zero Cross type SIP 4pin Triac output SSR ■ Description S102S02 Series and S202S02 Series Solid State Relays (SSR) are an integration of an infrared emitting diode (IRED), a Phototriac Detector and a main output Triac. These devices are ideally suited for controlling high voltage AC loads with solid state reliability while providing 4.0kV isolation (Viso(rms)) from input to output. ■ Features 1. Output current, IT(rms)≤8.0A 2. Zero crossing functionary (VOX : MAX. 35V) 3. 4 pin SIP package 4. High repetitive peak off-state voltage (VDRM : 600V, S202S02 Series) (VDRM : 400V, S102S02 Series) 5.
