DME44SB - DC Brush Motors

Download the DME44SB datasheet PDF (DME44SA included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for dc brush motors.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (DME44SA-Servo.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number DME44SB
Manufacturer Servo
File Size 458.28 KB
Description DC Brush Motors
Datasheet download datasheet DME44SB Datasheet

📁 Similar Datasheet

  • DME4101 - Silicon Beamless Schottky Diodes (Skyworks)
  • DME4101-099 - Schottky Diode Quad Mixer Chips Supplied on Film Frame (Skyworks)
  • DME4P12K-F - Polyester Film Capacitors Metallized Radial Leads (Cornell Dubilier Electronics)
  • DME4P15K-F - Polyester Film Capacitors Metallized Radial Leads (Cornell Dubilier Electronics)
  • DME4P18K-F - Polyester Film Capacitors Metallized Radial Leads (Cornell Dubilier Electronics)
  • DME4P1K-F - Polyester Film Capacitors Metallized Radial Leads (Cornell Dubilier Electronics)
  • DME4P22K-F - Polyester Film Capacitors Metallized Radial Leads (Cornell Dubilier Electronics)
  • DME4P27K-F - Polyester Film Capacitors Metallized Radial Leads (Cornell Dubilier Electronics)
  • DME4P33K-F - Polyester Film Capacitors Metallized Radial Leads (Cornell Dubilier Electronics)
  • DME4P39K-F - Polyester Film Capacitors Metallized Radial Leads (Cornell Dubilier Electronics)
Other Datasheets by Servo

Full PDF Text Transcription

Click to expand full text

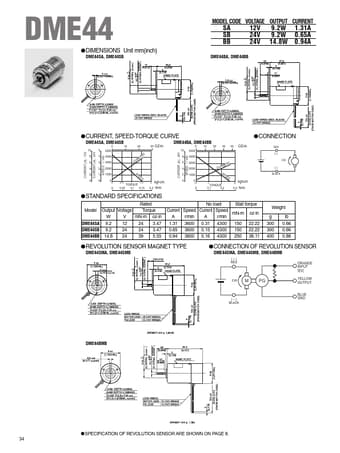

DME44 ●DIMENSIONS Unit mm(inch) DME44SA, DME44SB MODEL CODE VOLTAGE OUTPUT CURRENT SA 12V 9.2W 1.31A SB 24V 9.2W 0.65A BB 24V 14.8W 0.94A DME44BA, DME44BB ●CURRENT, SPEED-TORQUE CURVE CURRENT (A) : 12V CURRENT (A) : 24V SPEED r / min CURRENT (A) : 24V SPEED r / min DME44SA, DME44SB 0 10 10 5 5000 8 4 4000 6 3 3000 4 2 2000 20 30 OZ•In CURRENT DME44BA, DME44BB 0 10 20 10 5000 30 40 8 4000 6 3000 4 2000 CURRENT OZ•In 2 1 1000 SPEED 0 0 0 0 0.5 1 1.5 2 kgf•cm TORQUE 0 0.05 0.1 0.15 0.2 N•m 2 1000 0 0 0 0 SPEED 1 2 TORQUE 0.1 0.2 3 kgf•cm 0.3 N•m ●CONNECTION RED (+) CW (–) BLACK ●STANDARD SPECIFICATIONS Rated Model Output Voltage Torque W V mN-m oz·in DME44SA 9.2 12 24 3.47 DME44SB 9.2 24 24 3.47 DME44BB 14.8 24 39 5.
