SX8650 Worlds Lowest Power & Smallest Footprint 4-wire Resistive Touchscreen Controller

SX8650 Description

SX8650 World’s Lowest Power & Smallest Footprint 4-wire Resistive Touchscreen Controller with 15kV ESD ADVANCED COMMUNICATIONS & SENSING DATASHEET .
KEY PRODUCT FEATURES The SX8650 is an ultra low power 4-wire resistive touchscreen controller optimized for portable equipment where power and board.

SX8650 Features

* The SX8650 is an ultra low power 4-wire resistive touchscreen controller optimized for portable equipment where power and board-space are at a premium. It incorporates a highly accurate 12-bit ADC for data conversion and operates from a single 1.65 to 3.7V supply voltage. The SX8650 features a buil

SX8650 Applications

* The touch screen inputs have been specially designed to provide robust on-chip ESD protection of up to ±15kV in both HBM and Contact Discharge, and eliminates the need for external protection devices. The SX8650 supports the Fast-mode I²C (400kbit/s) serial bus data protocol and includes 2 user-sel

📥 Download Datasheet

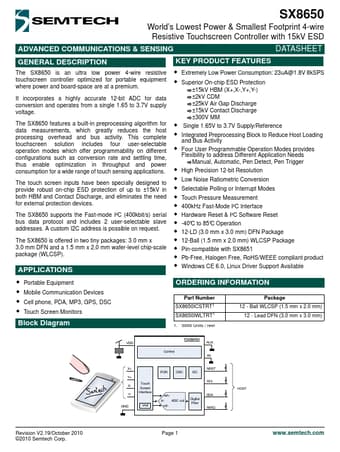

Preview of SX8650 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SX8650
Manufacturer
Semtech
File Size
612.75 KB
Datasheet
SX8650_Semtech.pdf
Description
Worlds Lowest Power & Smallest Footprint 4-wire Resistive Touchscreen Controller
