SX8725C ZoomingADC

SX8725C Description

SX8725C ZoomingADC for sensing data acquisition ADVANCED COMMUNICATIONS & SENSING DATASHEET .
The SX8725C is a data acquisition system based on Semtech's low power ZoomingADC™ technology.

SX8725C Features

* Up to 16-bit differential data acquisition Programmable gain: (1/12 to 1000) Sensor offset compensation up to 15 times full scale of input signal 1 differential or 2 single-ended signal inputs Programmable Resolution versus Speed versus Supply current Digital outputs to bias Sensors Internal or exte

SX8725C Applications

* Industrial pressure sensing Industrial temperature sensing Industrial chemical sensing Barometer Compass ORDERING INFORMATION DEVICE SX8725CWLTDT PACKAGE MLPD-W-12 4x4 REEL QUANTITY 1000 - Available in tape and reel only - WEEE/RoHS compliant, Pb-Free and Halogen Free. FUNCTIONAL BLOC DIAGRAM SX

📥 Download Datasheet

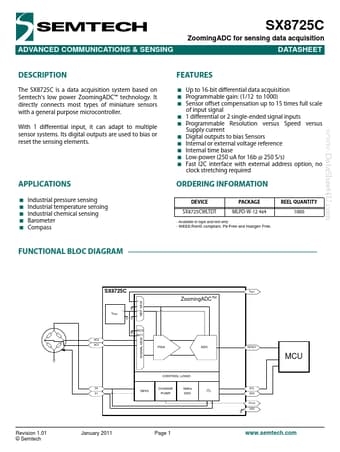

Preview of SX8725C PDF
datasheet Preview Page 2 datasheet Preview Page 3
