UR7HCTS2-U860 - High-Performance USB Touch Screen Controller / Digitizer

Semtech Corporation

The UR7HCTS2-U860 by Semtech Corporation is a High-Performance USB Touch Screen Controller / Digitizer. Below is the official datasheet preview.

📥 Download Datasheet

UR7HCTS2-U860 High-Performance USB Touch Screen Controller / Digitizer by Semtech Corporation - Datasheet Preview — Official preview page of the **UR7HCTS2-U860** High-Performance USB Touch Screen Controller / Digitizer datasheet (Semtech Corporation).

Datasheet Details

Part number	UR7HCTS2-U860
Manufacturer	Semtech Corporation
File Size	107.36 KB
Description	High-Performance USB Touch Screen Controller / Digitizer
Datasheet	UR7HCTS2-U860_SemtechCorporation.pdf

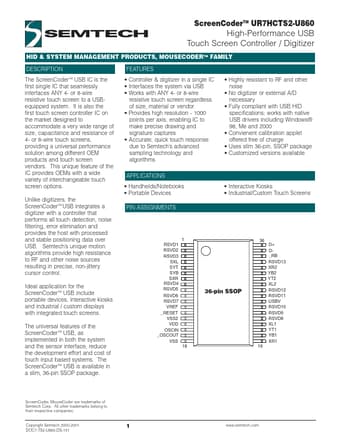

Additional preview pages of the UR7HCTS2-U860 datasheet.

UR7HCTS2-U860 Product details

Description

The ScreenCoder USB IC is the first single IC that seamlessly interfaces ANY 4- or 8-wire resistive touch screen to a USBequipped system.

Features

Controller & digitizer in a single IC.
Interfaces the system via USB.
Works with ANY 4- or 8-wire resistive touch screen regardless of size, material or vendor.
Provides high resolution - 1000 points per axis, enabling IC to make precise drawing and signature captures.
Accurate, quick touch response due to Semtech’s advanced sampling technology and algorithms.
