UR7225, UR7215 - ULTRA LOW IQ VOLTAGE REGULATOR

Name: UR7225
SKU: UR7225-1429455

UTC

The UR7225 by UTC is a ULTRA LOW IQ VOLTAGE REGULATOR. Below is the official datasheet preview.

📥 Download Datasheet

UR7225 ULTRA LOW IQ VOLTAGE REGULATOR by UTC - Datasheet Preview — Official preview page of the **UR7225** ULTRA LOW IQ VOLTAGE REGULATOR datasheet (UTC).

Datasheet Details

Part number	UR7225, UR7215
Manufacturer	UTC
File Size	224.48 KB
Description	ULTRA LOW IQ VOLTAGE REGULATOR
Datasheet	UR7215-UTC.pdf
Note	This datasheet PDF includes multiple part numbers: UR7225, UR7215. Please refer to the document for exact specifications by model.

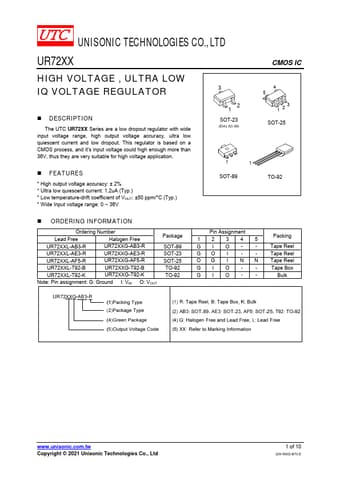

Additional preview pages of the UR7225 datasheet.

UR7225 Product details

Description

The UTC UR72XX Series are a low dropout regulator with wide input voltage range, high output voltage accuracy, ultra low quiescent current and low dropout.

Features

High output voltage accuracy: ± 2%.
Ultra low quiescent current: 1.2uA (Typ. ).
Low temperature-drift coefficient of VOUT: ±50 ppm/°C (Typ. ).
Wide Input voltage range: 0 ~ 36V 2 1 SOT-23 (EIAJ SC-59) 1 1 SOT-89 CMOS IC 4 5 1 23 SOT-25 TO-92.
