SX1236 137 MHz to 1020 MHz Low Power Bi-Band Transceiver

SX1236 Description

WIRELESS & SENSING SX1236 - 137 MHz to 1020 MHz Low Power Bi-Band Transceiver SX1236 DATASHEET GENERAL .
The SX1236 is a fully integrated ISM band transceiver capable of bi-band operation in most un-licensed bands in the sub-GHz space with a minimum of ex.

SX1236 Features

* 143 dB maximum link budget
* +20 dBm - 100 mW constant RF output vs. V supply
* +14 dBm high efficiency PA
* Programmable bit rate up to 300 kbps
* High sensitivity: down to -123 dBm
* Bullet-proof front end: IIP3 = -11 dBm
* Excellent blocking immunity
* Low RX cur

SX1236 Applications

* powered by alkaline battery chemistries or long battery life metering applications using Lithium battery chemistries. The Low-IF architecture of the SX1236 sees fast transceiver start times and demodulation predicated towards low modulation index and gaussian filtered spectrally efficient modulation

📥 Download Datasheet

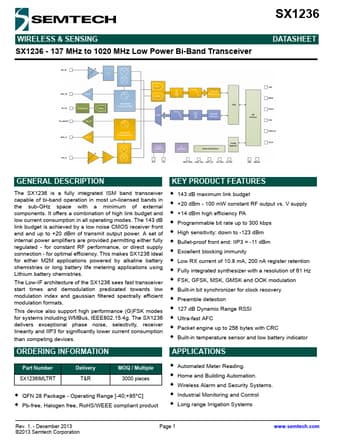

Preview of SX1236 PDF
