SX1243 Low Cost Integrated Transmitter IC

SX1243 Description

SX1243 WIRELESS & SENSING DATASHEET SX1243 - Low Cost Low Current Integrated Transmitter 310 to 928MHz Frequency Agile GENERAL .
The SX1243 is an ultra-low-cost, fully integrated FSK or OOK transmitter suitable for operation between 310 and 450 MHz, 860 and 870 MHz, as well as 9.

SX1243 Features

* ORDERING INFORMATION Part Number SX1243IULTRT Temperature Range -40 °C to +85 °C Package DFN-UT8 MOQ / Multiple 3000 pieces Pb-Free, Halogen Free, RoHS/WEEE compliant product.
* +10 dBm or 0 dBm Configurable output power Bit rates up to 100 kbps OOK

SX1243 Applications

* where economy is paramount, the SX1243 may be used without the requirement for configuration via an MCU. However, in conjunction with a microcontroller the communication link parameters may be re-configured. Including, output power, modulation format and operating channel. The SX1243 offers integrat

📥 Download Datasheet

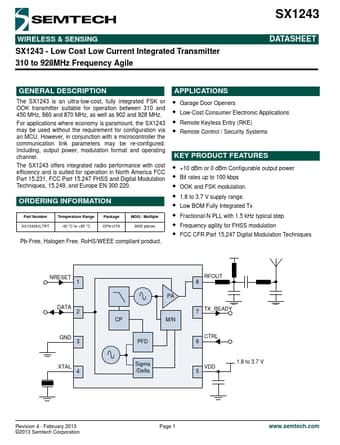

Preview of SX1243 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SX1243
Manufacturer
Semtech
File Size
889.53 KB
Datasheet
SX1243_Semtech.pdf
Description
Low Cost Integrated Transmitter IC
