SMF12TC - TVS Diode Array For ESD and Latch-Up Protection

Semtech Corporation

The SMF12TC by Semtech Corporation is a TVS Diode Array For ESD and Latch-Up Protection. Below is the official datasheet preview.

📥 Download Datasheet

SMF12TC TVS Diode Array For ESD and Latch-Up Protection by Semtech Corporation - Datasheet Preview — Official preview page of the **SMF12TC** TVS Diode Array For ESD and Latch-Up Protection datasheet (Semtech Corporation).

Datasheet Details

Part number	SMF12TC
Manufacturer	Semtech Corporation
File Size	160.23 KB
Description	TVS Diode Array For ESD and Latch-Up Protection
Datasheet	SMF12TC_SemtechCorporation.pdf

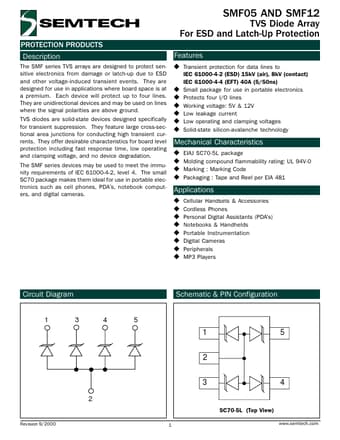

Additional preview pages of the SMF12TC datasheet.

SMF12TC Product details

Description

The SMF series TVS arrays are designed to protect sensitive electronics from damage or latch-up due to ESD and other voltage-induced transient events.

Features

u Transient protection for data lines to u u u u u u u u u u u u u u u u u u IEC 61000-4-2 (ESD) 15kV (air), 8kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) Small package for use in portable electronics Protects four I/O lines Working voltage: 5V & 12V Low leakage current Low operating and clamping voltages Solid-state silicon-avalanche technology Mechanical Characteristics EIAJ SC70-5L package Molding compound flammability rating: UL 94V-0 Marking : Marking Code Packaging : Tape and Reel per EI.
