PE83H5Q - N-Channel Enhancement Mode Power MOSFET

Semione

The PE83H5Q by Semione is a N-Channel Enhancement Mode Power MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

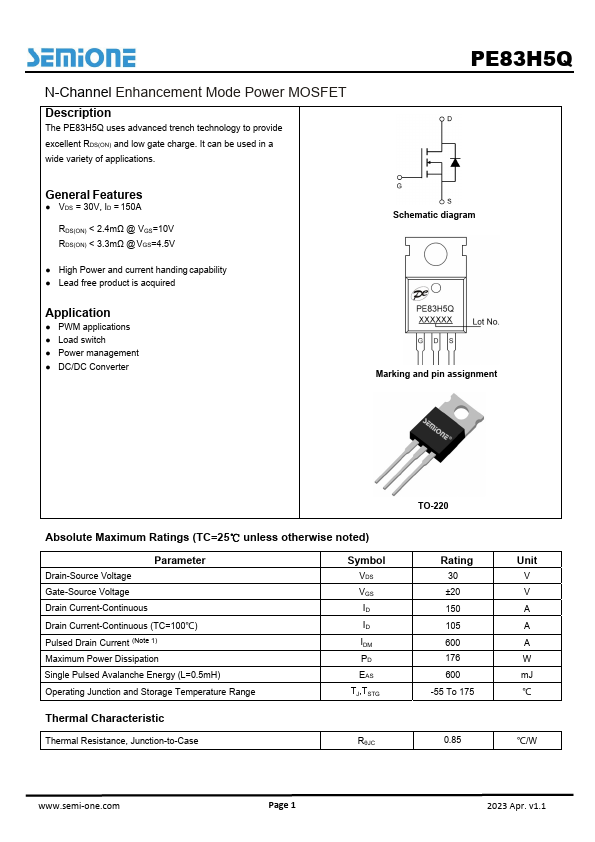

PE83H5Q N-Channel Enhancement Mode Power MOSFET by Semione - Datasheet Preview — Official preview page of the PE83H5Q N-Channel Enhancement Mode Power MOSFET datasheet (Semione).

Datasheet Details

Part number	PE83H5Q
Manufacturer	Semione
File Size	787.11 KB
Description	N-Channel Enhancement Mode Power MOSFET
Datasheet	PE83H5Q-Semione.pdf

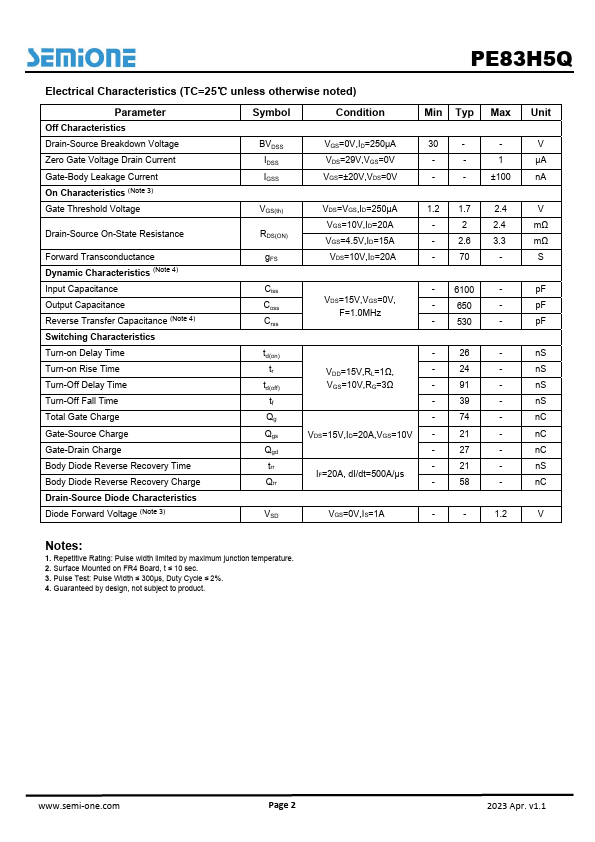

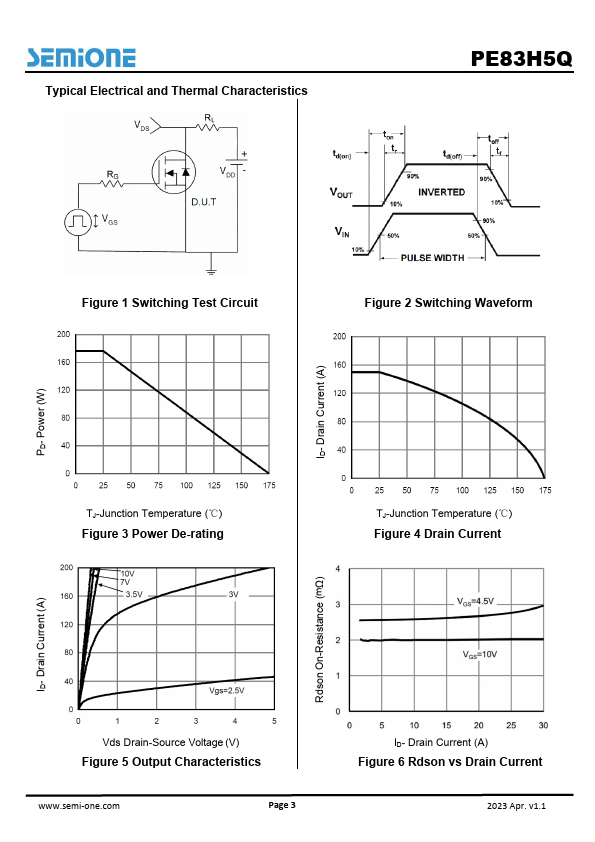

Additional preview pages of the PE83H5Q datasheet.

PE83H5Q Product details

Description

The PE83H5Q uses advanced trench technology to provide excellent RDS(ON) and low gate charge.

Features

VDS = 30V, ID = 150A RDS(ON) < 2.4mΩ @ VGS=10V RDS(ON) < 3.3mΩ @ VGS=4.5V.
High Power and current handing capability.
Lead free product is acquired.
