PE83H3K - N-Channel Enhancement Mode Power MOSFET

Semione

📥 Download Datasheet

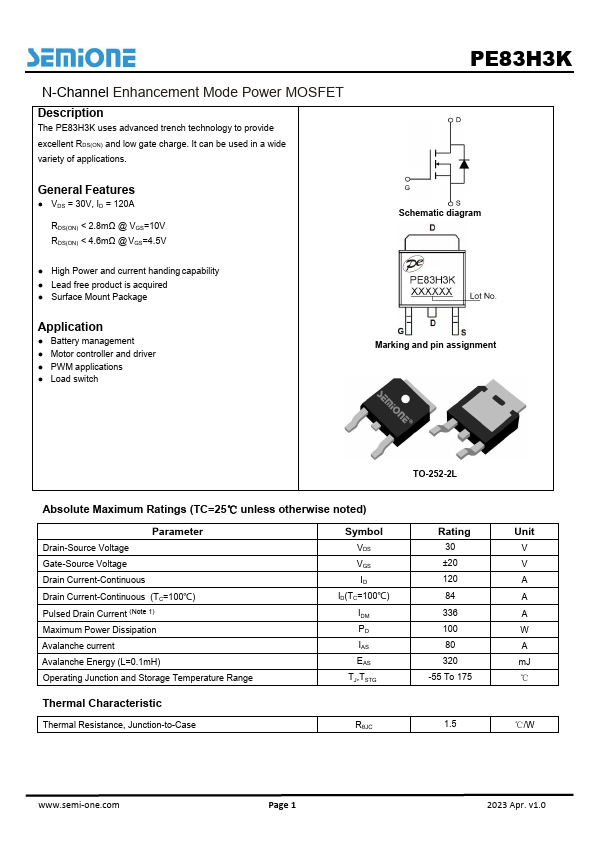

PE83H3K Datasheet Preview — Preview of PE83H3K PDF

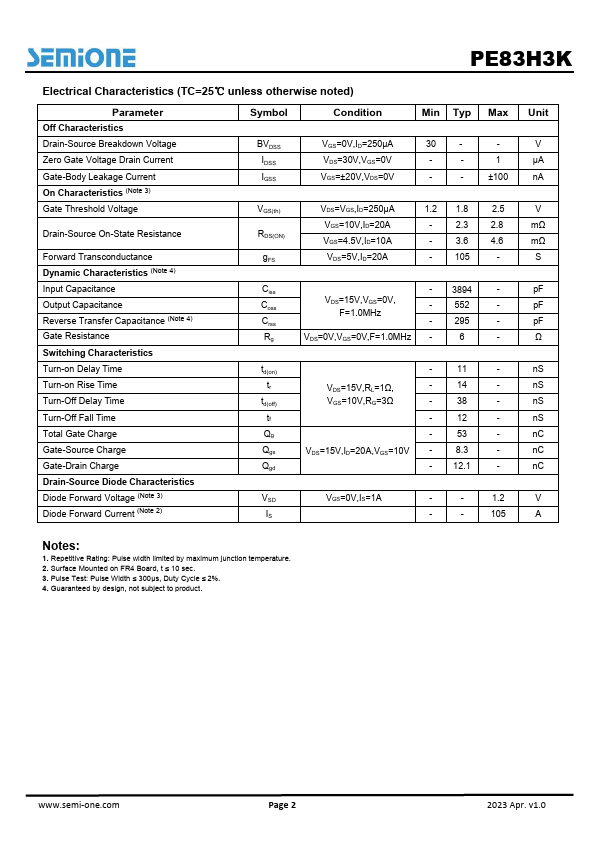

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	PE83H3K
Manufacturer	Semione
File Size	2.53 MB
Description	N-Channel Enhancement Mode Power MOSFET
Datasheet	PE83H3K-Semione.pdf

PE83H3K Product details

Description

The PE83H3K uses advanced trench technology to provide excellent RDS(ON) and low gate charge.

Features

VDS = 30V, ID = 120A RDS(ON) < 2.8mΩ @ VGS=10V RDS(ON) < 4.6mΩ @ VGS=4.5V.
High Power and current handing capability.
Lead free product is acquired.
Surface Mount Package.
