SKiiP28MLI07E3V1 - 3-Level NPC IGBT

Features

  • br>.
  • 650V Trench IGBTs.
  • Robust and soft diodes in CAL technology.
  • Highly reliable spring contacts for electrical connections.
  • UL recognised: File no. E63532.
  • NTC T-Sensor Typical.

📥 Download Datasheet

Datasheet Details

Part number SKiiP28MLI07E3V1
Manufacturer Semikron
File Size 785.51 KB
Description 3-Level NPC IGBT
Datasheet download datasheet SKiiP28MLI07E3V1 Datasheet

📁 Similar Datasheet

Other Datasheets by Semikron

Full PDF Text Transcription

Click to expand full text

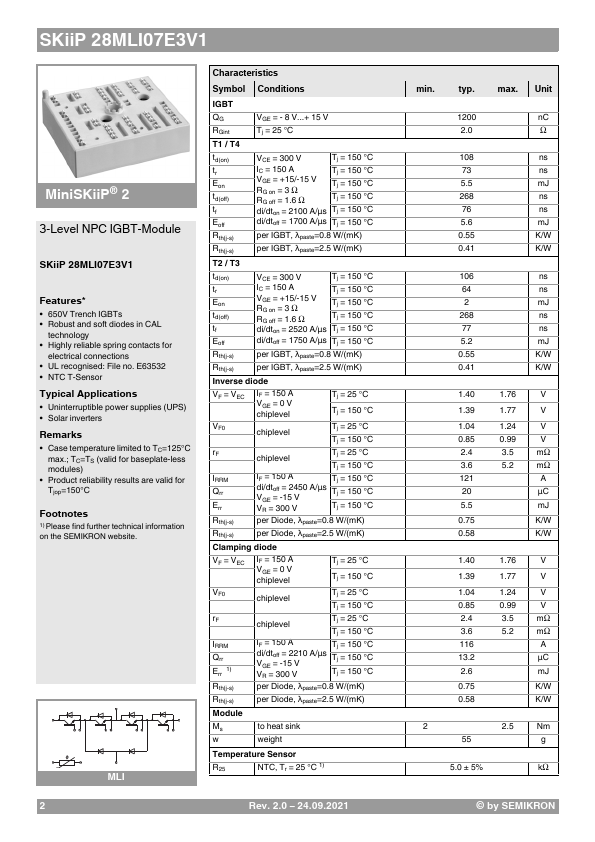

SKiiP 28MLI07E3V1 MiniSKiiP® 2 3-Level NPC IGBT-Module SKiiP 28MLI07E3V1 Features* • 650V Trench IGBTs • Robust and soft diodes in CAL technology • Highly reliable spring contacts for electrical connections • UL recognised: File no. E63532 • NTC T-Sensor Typical Applications • Uninterruptible power supplies (UPS) • Solar inverters Remarks • Case temperature limited to TC=125°C max.; TC=TS (valid for baseplate-less modules) • Product reliability results are valid for Tjop=150°C Footnotes 1) Please find further technical information on the SEMIKRON website. Absolute Maximum Ratings Symbol Conditions IGBT VCES IC λpaste=0.8 W/(mK) Ts = 25 °C Tj = 175 °C Ts = 70 °C IC λpaste=2.
