STP4A60S - Sensitive Gate Triacs

STP4A60S Description

www.DataSheet4U.com SemiWell Semiconductor Sensitive Gate Triacs STP4A60S Symbol .
This device is sensitive gate triac suitable for direct coupling to TTL, HTL, CMOS and application such as various logic functions, low power AC switc.

STP4A60S Features

* Repetitive Peak Off-State Voltage : 600V R. M. S On-State Current ( IT(RMS)= 4 A )
* High Commutation dv/dt
* Sensitive Gate Triggering 4 Mode
* Non-isolated Type

STP4A60S Applications

* such as fan speed, small light controllers and home appliance equipment. TO-220 1 2 3 Absolute Maximum Ratings Symbol VDRM IT(RMS) ITSM I2 t PGM PG(AV) IGM VGM TJ TSTG ( TJ = 25°C unless otherwise specified ) Condition Ratings 600 TC =107 °C One Cycle, 50Hz/60Hz, Peak, Non-Repetitive 4.0 30/33

📥 Download Datasheet

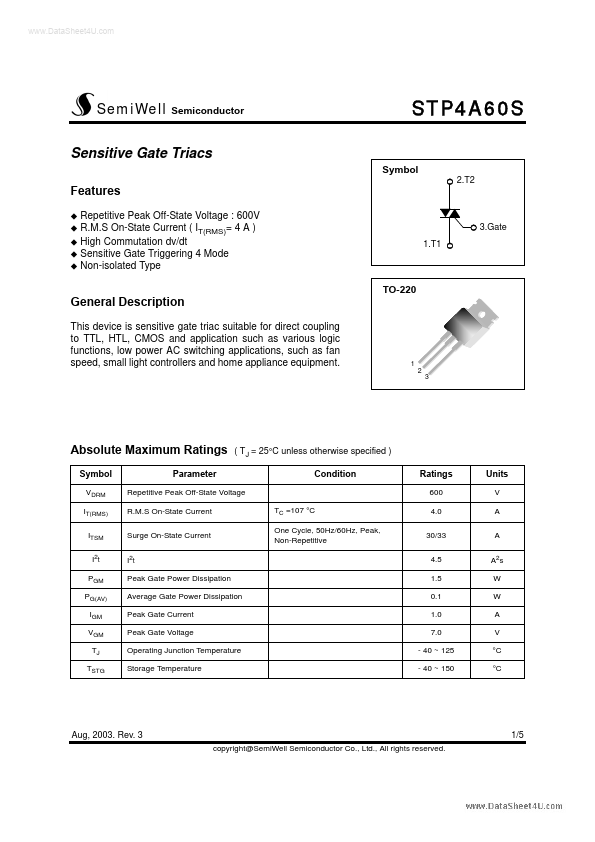

Preview of STP4A60S PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STP4A60S
Manufacturer
SemiWell Semiconductor
File Size
675.23 KB
Datasheet
STP4A60S_SemiWellSemiconductor.pdf
Description
Sensitive Gate Triacs
