SDP60S120D Silicon Carbide Power Schottky Diode

SDP60S120D Description

Silicon Carbide Power Schottky Diode .

SDP60S120D Features

* - Positive Temperature Coefficient for Ease of Paralleling - Temperature Independent Switching Behavior - 175 °C Maximum Operating Temperature - Zero Reverse Recovery Current - Zero Forward Recovery Voltage 4 Silicon Carbide SDP60S120D Product Summary VDC 1200 V IF 60 A Qc 260 nC K(4) Appli

SDP60S120D Applications

* - Solar Inverter - SMPS - Power Factor Correction - Induction Heating - UPS - Motor Drive TO-247 3 2 1 A(1) A(3) K(2) Internal Schematic MAXIMUM RATINGS Parameter Repetitive Peak Reverse Voltage DC Blocking Voltage Continuous Forward Current (Per Leg / Per Device) Peak Repetitive Forward Cur

📥 Download Datasheet

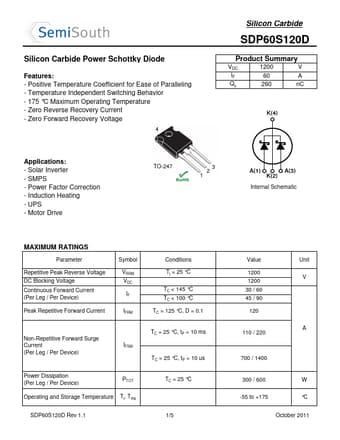

Preview of SDP60S120D PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SDP60S120D
Manufacturer
SemiSouth
File Size
136.58 KB
Datasheet
SDP60S120D-SemiSouth.pdf
Description
Silicon Carbide Power Schottky Diode
