SDP601, SDP600 Low-cost Digital Differential Pressure Sensor

SDP601 Description

SDP600 Series (SDP6xx/5xx) Low-cost Digital Differential Pressure Sensor * Accuracy better than 0.2% FS near zero * Digital output (I2C) *.

SDP601 Features

* a digital 2-wire interface, which makes it easy to connect directly to a microprocessor. The signal is internally linearized and temperature compensated. The outstanding performance of these sensors is based on Sensirio

SDP601 Applications

* They measure the pressure of air and nonaggressive gases with superb accuracy and no offset drift. The sensors cover a pressure range of up to ±500 Pa (±2 inch H2O / ±5 mbar) and deliver outstanding accuracy even at the bottom end of the measuring range. The SDP600 series operates from a 3.3V suppl

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SDP601, SDP600. Please refer to the document for exact specifications by model.

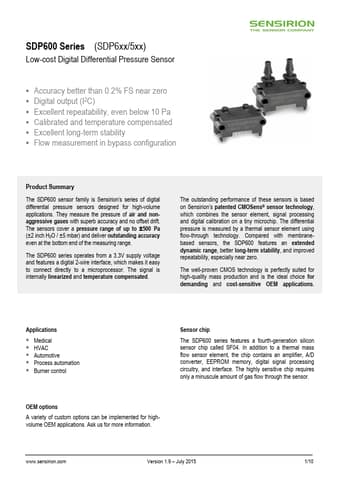

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SDP601, SDP600
Manufacturer
SENSIRION
File Size
460.30 KB
Datasheet
SDP600-SENSIRION.pdf
Description
Low-cost Digital Differential Pressure Sensor
Note
This datasheet PDF includes multiple part numbers: SDP601, SDP600.
Please refer to the document for exact specifications by model.
