SM2N60S-I - 600V N-Channel MOSFET

The SM2N60S-I by SemiMOS is a 600V N-Channel MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	SM2N60S-I
Manufacturer	SemiMOS
File Size	695.46 KB
Description	600V N-Channel MOSFET
Datasheet	SM2N60S-I-SemiMOS.pdf

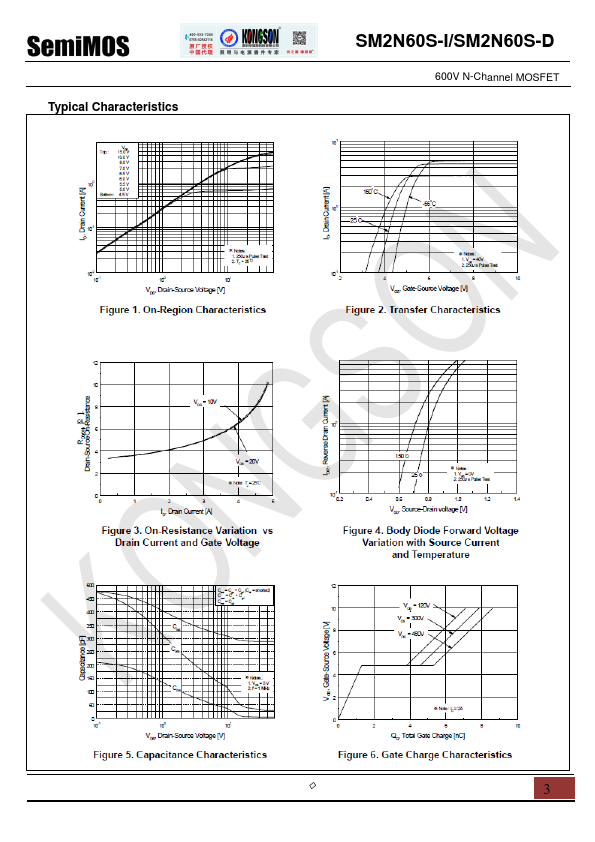

Additional preview pages of the SM2N60S-I datasheet.

Low Intrinsic Capacitances.
Excellent Switching Characteristics.
Extended Safe Operating Area.
Unrivalled Gate Charge :Qg=8.5nC (Typ. ).
BVDSS=600V,ID=2A.
RDS(on) : 4.5 Ω (Max) @VG=10V.
100% Avalanche Tested TO‐252 TO‐251 1.Gate (G) 2.Drain (D) 3.Source (S) Absolute Maximum Ratings (Ta=25℃ unless otherwise noted) Symbol VDSS ID VGS(TH) EAS IAR PD Tj Tstg TL Parameter Drain-Source Voltage Drain Current Gate Threshold Voltag.
