SM2006NSK - N-channel MOSFET

Sinopower

📥 Download Datasheet

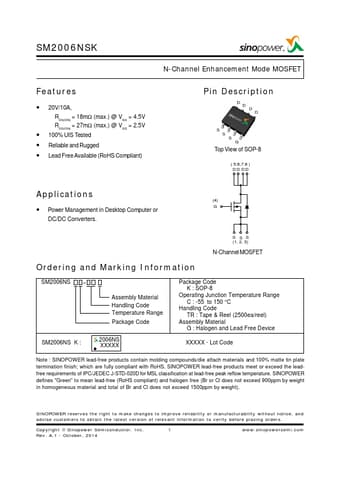

SM2006NSK Datasheet Preview — Preview of SM2006NSK PDF

Datasheet Details

Part number	SM2006NSK
Manufacturer	Sinopower
File Size	170.21 KB
Description	N-channel MOSFET
Datasheet	SM2006NSK-Sinopower.pdf

SM2006NSK Product details

Description

D D D D S S S G Top View of SOP-8 ( 5,6,7,8 ) DD DD Applications Power Management in Desktop Computer or DC/DC Converters.(4) G S SS (1, 2, 3) N-Channel MOSFET Ordering and Marking Information SM2006NS SM2006NS K : Assembly Material Handling Code Temperature Range Package Code 2006NS XXXXX Package Code K : SOP-8 Operating Junction Temperature Range C : -55 to 150 oC Handling Code TR : Tape & Reel (2500ea/reel) Assembly Material G : Halogen and Lead Free Device XXXXX - Lot Code

Features

20V/10A, RDS(ON) = 18mΩ (max. ) @ VGS = 4.5V RDS(ON) = 27mΩ (max. ) @ VGS = 2.5V.
100% UIS Tested.
Reliable and Rugged.
Lead Free Available (RoHS Compliant) ® N-Channel Enhancement Mode MOSFET Pin.
