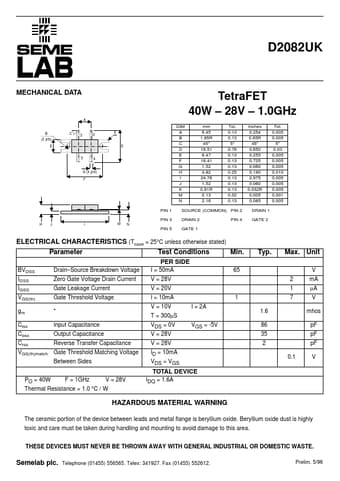

D2082UK, D20, TetraFET
D2082UK MECHANICAL DATA TetraFET 40W 28V 1.0GHz A K B (2 pls) E C 1 2 3 D 5 4 G (4 pls) F DIM A B C D E F G H I J K M N PIN 1 PIN 3 mm 6.45 1.65R 45° 16.51 6.47 18.41 1.52 4.82 24.76 1.52 0.81R 0.13 2.16 Tol.
0.13 0.13 5° 0.76 0.13 0.13 0.13 0.25 0.13 0.13 0.13 0.02 0.13 Inches 0.254 0.65R 45° 0.650 0.255 0.725 0.060 0.190 0.975 0.060 0.032R 0.005 0.085 DRAIN 1 GATE 2 Tol.
0.005 0.005 5° 0.03 0.005 0.005 0.005 0.010 0.005 0.005 0.005 0.001 0.005 SOURCE (COMMON)
