2N6672 Datasheet - Seme LAB

2N6672 Bipolar NPN Device

2N6672 Dimensions in mm (inches). 25.15 (0.99) 26.67 (1.05) 10.67 (0.42) 11.18 (0.44) 6.35 (0.25) 9.15 (0.36) 1.52 (0.06) 3.43 (0.135) Bipolar NPN Device in a Hermetically sealed TO3 Metal Package. 38.61 (1.52) 39.12 (1.54) 29.9 (1.177) 30.4 (1.197) 16.64 (0.655) 17.15 (0.675) 0.97 (0.060) 1.10 (0.043) 22.23 (0.875) max. 1 2 3 (case) 3.84 (0.151) 4.09 (0.161) 7.92 (0.312) 12.70 (0.50) 1 Base TO3 (TO204AA) PINOUTS 2 Emitter Case - Collector Bipolar NPN Device. VCEO .

2N6672 Datasheet (10.25 KB)

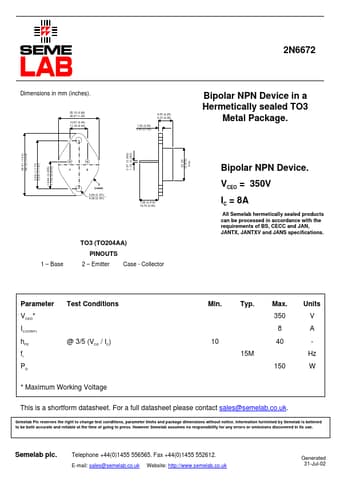

Preview of 2N6672 PDF

Datasheet Details

Part number:

2N6672

Manufacturer:

Seme LAB

File Size:

10.25 KB

Description:

Bipolar npn device.
