SUM318 - N-Channel MOSFET

Description

Typical applications are dc dc converters, power management in portable and battery

powered products such as computers, printers, PCMCIA cards, cellular and cordless telephones.

Features

  • Lower Gate Charge.
  • Small Package Outline SOT-363.

📥 Download Datasheet

Datasheet Details

Part number SUM318
Manufacturer SeCoS
File Size 294.58 KB
Description N-Channel MOSFET
Datasheet download datasheet SUM318 Datasheet

📁 Similar Datasheet

  • SUM30F - (SUM20F - SUM50F) HIGH VOLTAGE RECTIFIER (SSDI)
  • SUM30FSMS - (SUM20FSMS - SUM50FSMS) HIGH VOLTAGE RECTIFIER (SSDI)
  • SUM30UF - (SUM20UF - SUM50UF) HIGH VOLTAGE ULTRA FAST RECTIFIER (SSDI)
  • SUM30UFSMS - (SUM20UFSMS - SUM50UFSMS) HIGH VOLTAGE ULTRA FAST RECTIFIER (SSDI)
  • SUM35F - (SUM20F - SUM50F) HIGH VOLTAGE RECTIFIER (SSDI)
  • SUM35FSMS - (SUM20FSMS - SUM50FSMS) HIGH VOLTAGE RECTIFIER (SSDI)
  • SUM35UF - (SUM20UF - SUM50UF) HIGH VOLTAGE ULTRA FAST RECTIFIER (SSDI)
  • SUM35UFSMS - (SUM20UFSMS - SUM50UFSMS) HIGH VOLTAGE ULTRA FAST RECTIFIER (SSDI)
  • SUM36N20-54P - N-channel MOSFET (Vishay)
  • SUM09MN20-270 - N-Channel 200-V (D-S) 175C MOSFET (Vishay Siliconix)
Other Datasheets by SeCoS

Full PDF Text Transcription

Click to expand full text

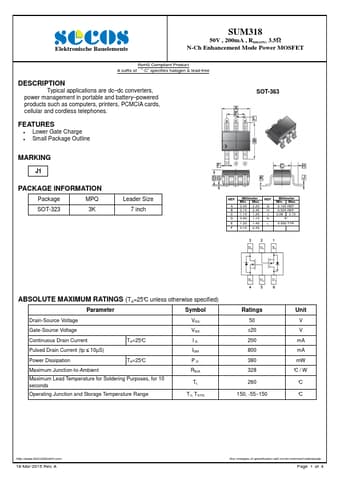

Elektronische Bauelemente SUM318 50V , 200mA , RDS(ON) 3.5Ω N-Ch Enhancement Mode Power MOSFET RoHS Compliant Product A suffix of “-C” specifies halogen & lead-free DESCRIPTION Typical applications are dc–dc converters, power management in portable and battery–powered products such as computers, printers, PCMCIA cards, cellular and cordless telephones. FEATURES ● Lower Gate Charge ● Small Package Outline SOT-363 MARKING J1 PACKAGE INFORMATION Package MPQ SOT-323 3K Leader Size 7 inch REF. A B C D E F Millimeter Min. Max. 2.00 2.20 2.15 2.45 1.15 1.35 0.90 1.10 1.20 1.40 0.15 0.35 REF. G H J K L Millimeter Min. Max. 0.100 REF. 0.525 REF. 0.08 0.15 8° 0.650 TYP.
