SM4001FL - 1.0 Amp Surface Mount Silicon Rectifiers

SM4001FL Description

Elektronische Bauelemente SM4001FL ~ SM4007FL Voltage 50V ~ 1000V 1.0 Amp Surface Mount Silicon Rectifiers RoHS Compliant Product A suffix of “-C” s.

SM4001FL Features

* Low forward surge current

SM4001FL Applications

* Low leakage current MECHANICAL DATA
* Case: JEDEC SOD-123FL, molded plastic over passivated chip
* Terminals: Solder Plated, solderable per MIL-STD-750, Method 2026
* Polarity: Color band denotes cathode end
* Weight: 0.006 ounces, 0.02 gram
* Mounting position: Any MARKI

📥 Download Datasheet

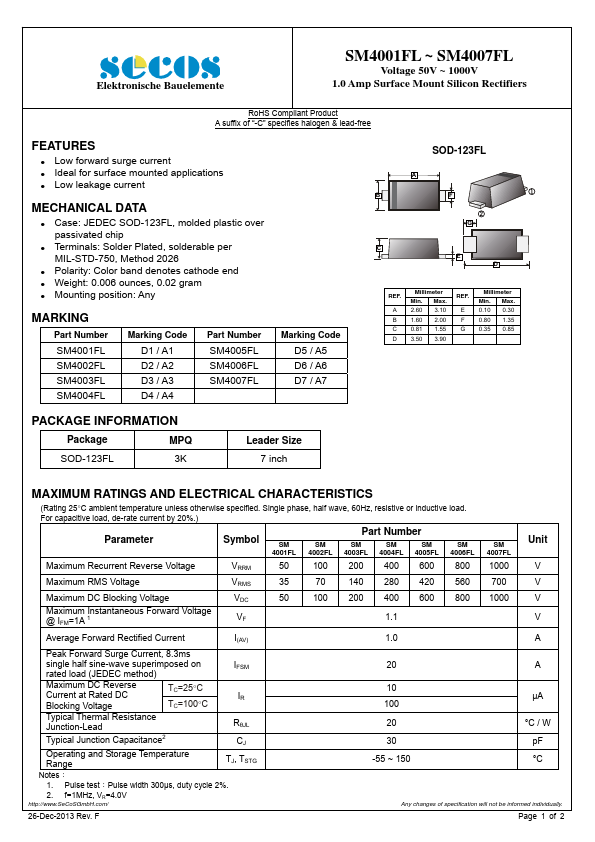

Preview of SM4001FL PDF

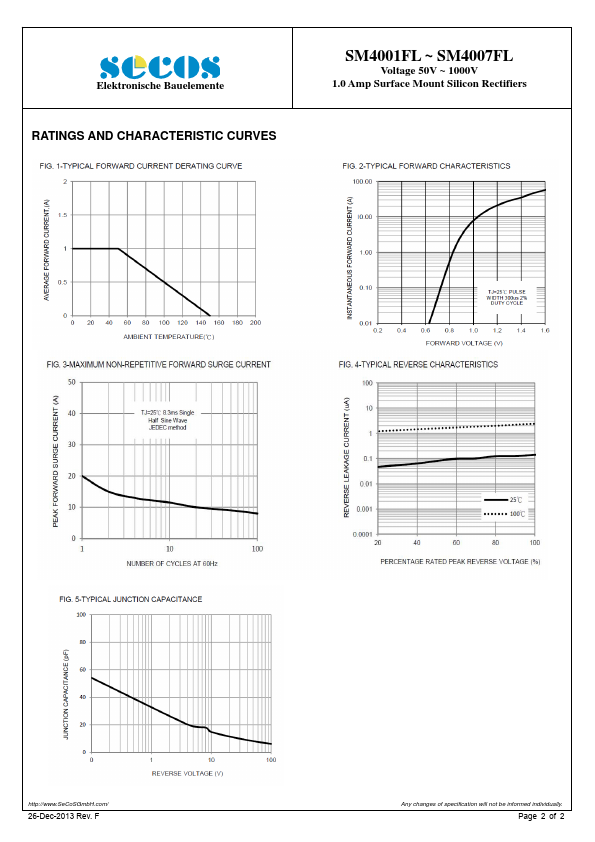

datasheet Preview Page 2

Datasheet Details

Part number
SM4001FL
Manufacturer
SeCoS
File Size
249.27 KB
Datasheet
SM4001FL-SeCoS.pdf
Description
1.0 Amp Surface Mount Silicon Rectifiers
