SM4002FL - SURFACE MOUNT RECTIFIER DIODES

This page provides the datasheet information for the SM4002FL, a member of the SM4001FL SURFACE MOUNT RECTIFIER DIODES family.

Datasheet Summary

Features

  • ! Glass Passivated Die Construction ! Ideally Suited for Automatic Assembly ! Low Forward Voltage Drop ! Low Power Loss ! Built-in Strain Relief ! Plastic Case Material has UL Flammability Classification Rating 94V-O Mechanical Data ! Case: JEDEC SOD-123FL molded plastic body over passivated chip ! Terminals : Plated axial leads, ! solderable per MIL-STD-750, Method 2026 ! Polarity : Color band denotes cathode end ! Mounting Position : Any ! Weight:0.0007 ounce, 0.02 grams B C E D H L E A S.

📥 Download Datasheet

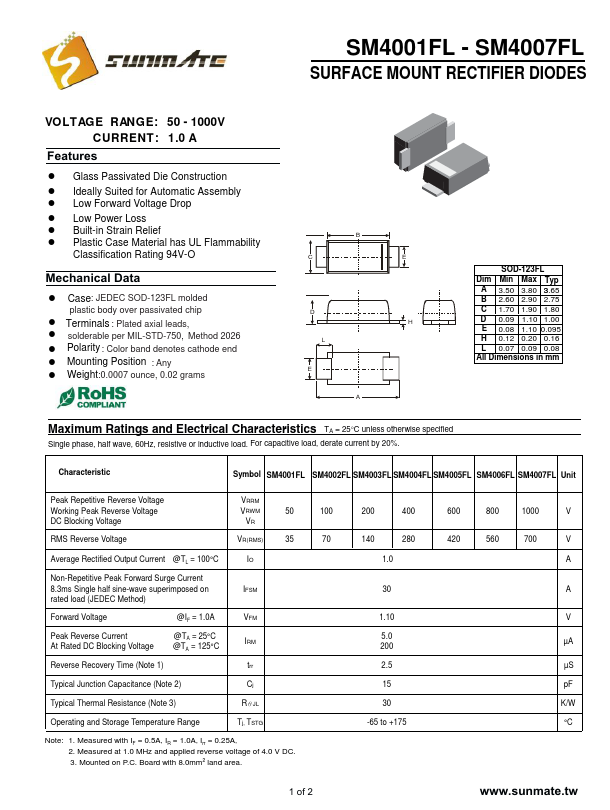

Datasheet preview – SM4002FL

Datasheet Details

Part number SM4002FL
Manufacturer Sunmate
File Size 146.13 KB
Description SURFACE MOUNT RECTIFIER DIODES
Datasheet download datasheet SM4002FL Datasheet

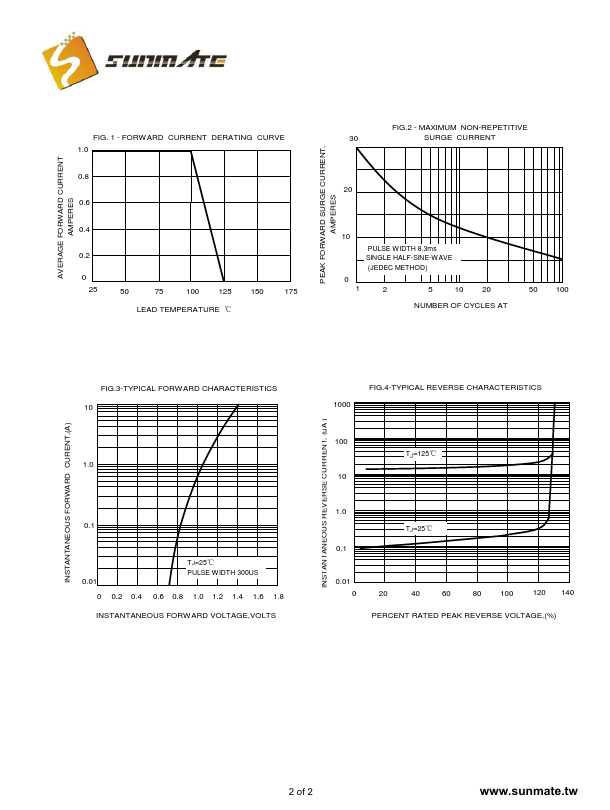

Additional preview pages of the SM4002FL datasheet.

📁 Similar Datasheet

  • SM4002FL - 1.0 Amp Surface Mount Silicon Rectifiers (SeCoS)
  • SM4002FLCR-C - 1.0 Amp Surface Mount Silicon Rectifiers (SeCoS)
  • SM4002 - RECTIFIER DIODES (AiT Components)
  • SM4002 - 1.0AMP. Surface Mount Glass Passivated Silicon Rectifiers (Kingtronics)
  • SM4002 - 1.0 A Surface Mount Silicon Rectifier (SEP ELECTRONIC)
  • SM4002 - GENERAL PURPOSE SILICON RECTIFIER (Dc Components)
  • SM4002 - Surface Mount Rectifiers (HY)
  • SM4002 - Standard Recovery SMD Rectifier Diodes (Diotec)
  • SM4002 - Surface Mount Standard Recovery Glass Passivated Rectifiers (Weitron Technology)
  • SM4002 - Standard silicon rectifier diodes (Semikron International)
Other Datasheets by Sunmate
  • SM4002 - SURFACE MOUNT SILICON RECTIFIER DIODES
  • SM4002A - SURFACE MOUNT SILICON RECTIFIER DIODES
  • SM4001 - SURFACE MOUNT SILICON RECTIFIER DIODES
  • SM4001A - SURFACE MOUNT SILICON RECTIFIER DIODES
  • SM4001FL - SURFACE MOUNT RECTIFIER DIODES
  • SM4003 - SURFACE MOUNT SILICON RECTIFIER DIODES
  • SM4003A - SURFACE MOUNT SILICON RECTIFIER DIODES
  • SM4003FL - SURFACE MOUNT RECTIFIER DIODES

Full PDF Text Transcription

Click to expand full text
SM4001FL - SM4007FL SURFACE MOUNT RECTIFIER DIODES VOLTAGE RANGE: 50 - 1000V CURRENT: 1.0 A Features ! Glass Passivated Die Construction ! Ideally Suited for Automatic Assembly ! Low Forward Voltage Drop ! Low Power Loss ! Built-in Strain Relief ! Plastic Case Material has UL Flammability Classification Rating 94V-O Mechanical Data ! Case: JEDEC SOD-123FL molded plastic body over passivated chip ! Terminals : Plated axial leads, ! solderable per MIL-STD-750, Method 2026 ! Polarity : Color band denotes cathode end ! Mounting Position : Any ! Weight:0.0007 ounce, 0.02 grams B C E D H L E A SOD-123FL Dim Min Max Typ A 3.50 3.80 3.65 B 2.60 2.90 2.75 C 1.70 1.90 1.80 D 0.09 1.10 1.00 E 0.08 1.10 0.095 H 0.12 0.20 0.16 L 0.07 0.09 0.
