SD05CL-C, SD03CL-C 350W Plastic Encapsulate ESD Protection Diodes

SD05CL-C Description

Elektronische Bauelemente SD03CL-C~SD24CL-C Voltage 3V~24V 350W Plastic Encapsulate ESD Protection Diodes RoHS Compliant Product A suffix of “-C” sp.
This series are ultra-low capacitance transient voltage suppressor arrays, designed to protect applications such as portable electronics and SMART pho.

SD05CL-C Features

* Transient protection for high-speed data lines
* IEC61000-4-2 (ESD) ±30kV (air), ±30kV (contact)
* IEC61000-4-4 (EFT) 40A (5/50ns)
* Protects one I/O line (bidirectional)
* Low clamping voltage
* Low leakage current
* Response time

SD05CL-C Applications

* such as portable electronics and SMART phones. This series is available in bidirectional configurations and is rated at 350 Watts for an 8/20μs wave shape. This series meets IEC 61000-4-2 (ESD) and IEC 61000-4-4 (EFT) requirements. At higher operating frequencies or faster edge rates, insertion loss

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SD05CL-C, SD03CL-C. Please refer to the document for exact specifications by model.

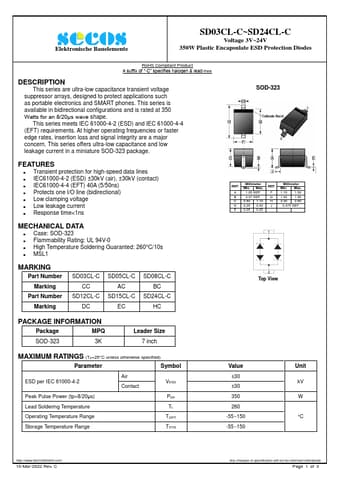

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SD05CL-C, SD03CL-C
Manufacturer
SeCoS
File Size
570.40 KB
Datasheet
SD03CL-C-SeCoS.pdf
Description
350W Plastic Encapsulate ESD Protection Diodes
Note
This datasheet PDF includes multiple part numbers: SD05CL-C, SD03CL-C.
Please refer to the document for exact specifications by model.
