SD05CL, SD03CL 250W Plastic Encapsulate ESD Protection Diodes

SD05CL Description

Elektronische Bauelemente SD03CL~SD24CL Voltage 3V ~ 24V 250W Plastic Encapsulate ESD Protection Diodes RoHS Compliant Product A suffix of “-C” spec.
The Series are ultra low capacitance transient voltage suppressor arrays, designed to protect applications such as portable electronics and SMART phon.

SD05CL Features

* IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC61000-4-4 (EFT) 40A (5/50ns) Protects one I/O line (bidirectional) Low clamping voltage MECHANICAL DATA Case：SOD-323 Flammability Rating: UL 94V-0 High temperature soldering guaranted:260℃/10s MARKING Part Number Marking Part Number Marking SD03CL

SD05CL Applications

* such as portable electronics and SMART phones. This series is available in both unidirectional and bidirectional configurations and is rated at 350 Watts for an 8/20µs waveshape. The Series meets IEC 61000-4-2 (ESD) and IEC 61000-4-4 (EFT) requirements. At higher operating frequencies or faster edge

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SD05CL, SD03CL. Please refer to the document for exact specifications by model.

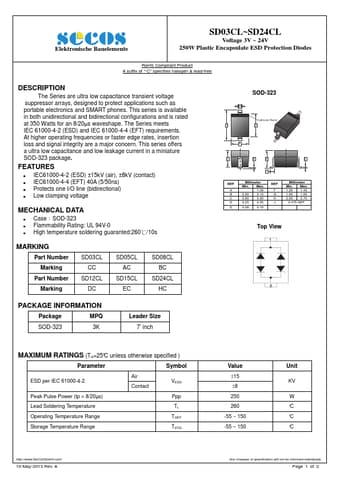

datasheet Preview Page 2

Datasheet Details

Part number
SD05CL, SD03CL
Manufacturer
SeCoS
File Size
549.31 KB
Datasheet
SD03CL-SeCoS.pdf
Description
250W Plastic Encapsulate ESD Protection Diodes
Note
This datasheet PDF includes multiple part numbers: SD05CL, SD03CL.
Please refer to the document for exact specifications by model.
