BAS16WS - Surface Mount Small Signal Switching Diode

The BAS16WS by SeCoS is a Surface Mount Small Signal Switching Diode. Below is the official datasheet preview.

📥 Download Datasheet

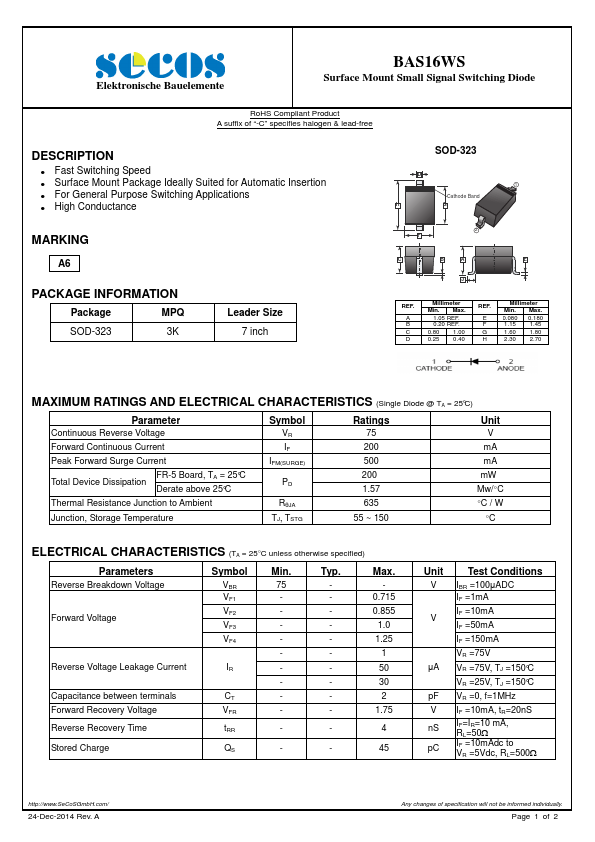

Official preview page of the BAS16WS Surface Mount Small Signal Switching Diode datasheet (SeCoS).

Datasheet Details

Part number BAS16WS
Manufacturer SeCoS
File Size 228.55 KB
Description Surface Mount Small Signal Switching Diode
Datasheet download datasheet BAS16WS-SeCoS.pdf

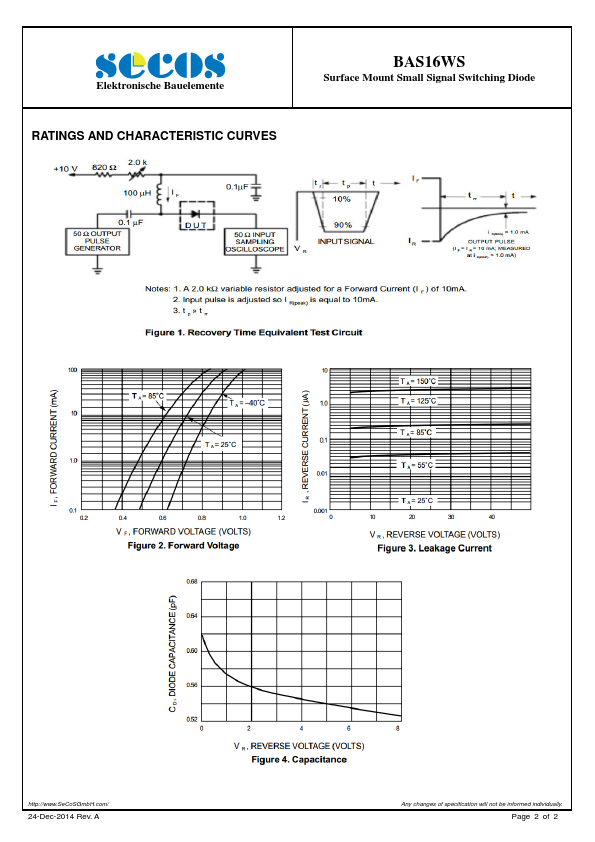

Additional preview pages of the BAS16WS datasheet.

BAS16WS Product details

Description

Fast Switching Speed Surface Mount Package Ideally Suited for Automatic Insertion For General Purpose Switching Applications High Conductance MARKING A6 PACKAGE INFORMATION Package MPQ SOD-323 3K Leader Size 7 inch SOD-323 D 1 Cathode Band H G 2 F C B A E J REF.A B C D Millimeter Min.Max.1.05 REF.0.20 REF.0.80 1.00 0.25 0.40 REF.E F G H Millimeter Min.Max.0.080 0.180 1.15 1.45 1.60 1.80 2.30 2.70 MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS (Single Diode @ TA =
