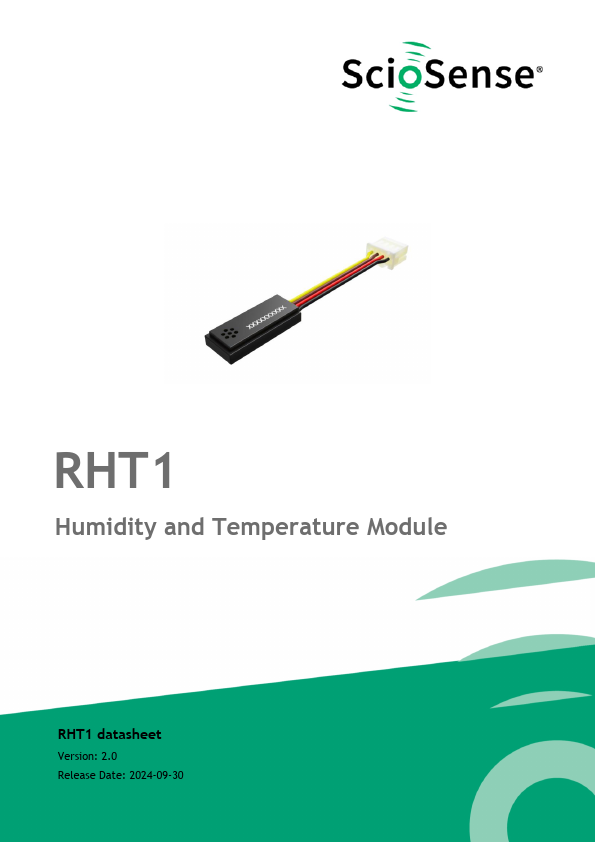

RHT1 - Humidity and Temperature Module

RHT1 Datasheet Preview — Preview of RHT1 PDF

Datasheet Details

Part number	RHT1
Manufacturer	ScioSense
File Size	520.50 KB
Description	Humidity and Temperature Module
Datasheet	RHT1-ScioSense.pdf

RHT1 Product details

Description

4 3 2 1 Table 1: Pin description Pin Pin Name Color 1 GND Black 2 VDD Red 3 VT Brown 4 VRH Yellow Pin Type Supply Supply Output Output Description Ground supply voltage Power voltage Temperature output Relative humidity output 4 Datasheet RHT1 SC-002292-DS-7 / 2024-09-30 CONTENTS PAGE 2 Relative humidity and temperature specifications Default conditions apply to values in Table 2, unless otherwise stated: 25 °C, 50 % RH, no MSL1 preconditioning, default periodic measuremen

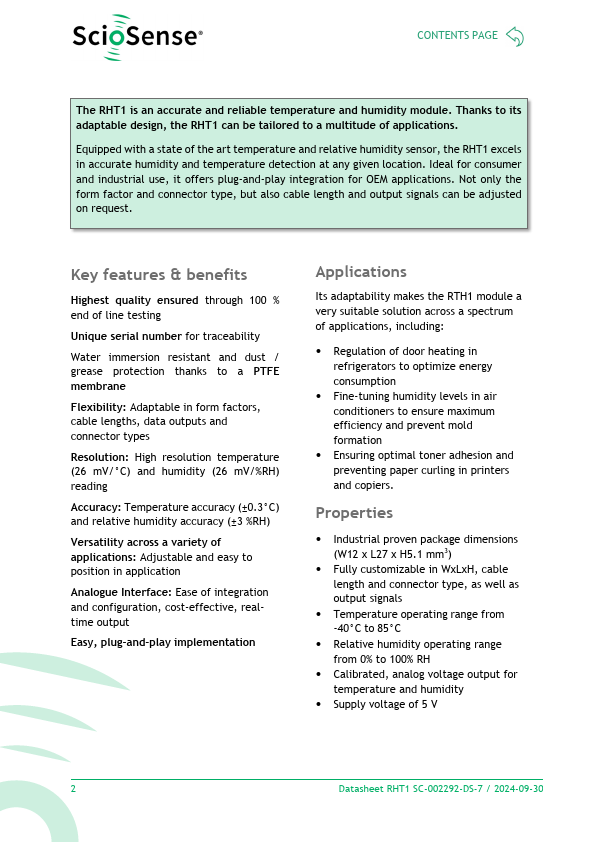

Features

& benefits Highest quality ensured through 100 % end of line testing Unique serial number for traceability Water immersion resistant and dust / grease protection thanks to a PTFE membrane Flexibility: Adaptable in form factors, cable lengths, data outputs and connector types Resolution: High resolution temperature (26 mV/°C) and humidity (26 mV/%RH) reading Accuracy: Temperature accuracy (±0.3°C) and relative humidity accuracy (±3 %RH) Versatility across a variety of.
