PFMF.010.2 - Resettable Fuses

The PFMF.010.2 by Schurter is a Resettable Fuses. Below is the official datasheet preview.

📥 Download Datasheet

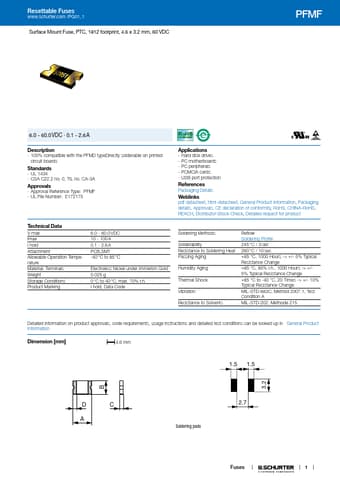

Official preview page of the PFMF.010.2 Resettable Fuses datasheet (Schurter).

Datasheet Details

Part number PFMF.010.2
Manufacturer Schurter
File Size 175.64 KB
Description Resettable Fuses
Datasheet download datasheet PFMF.010.2-Schurter.pdf
Additional preview pages of the PFMF.010.2 datasheet.

PFMF.010.2 Product details

Description

- 100% compatible with the PFMD typeDirectly solderable on printed circuit boards Standards - UL 1434 - CSA C22.2 no.0, TIL no.CA-3A Approvals - Approval Reference Type:  PFMF - UL File Number:  E172175 Technical Data V max Imax I hold Attachment Allowable Operation Temperature Material: Terminals Weight Storage Conditions Product Marking 6.0 - 60.0 VDC 10 - 100 A 0.1 - 2.6 A PCB,SMT -40 °C to 85 °C Electroless Nickel under Immerion Gold 0.025 g 0 °C to 40 °C, max.70% r.h.I hold, Data Code
