PFM1N60 - N-Channel MOSFET

The PFM1N60 by Wing On is a N-Channel MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	PFM1N60
Manufacturer	Wing On
File Size	917.86 KB
Description	N-Channel MOSFET
Datasheet	PFM1N60-WingOn.pdf

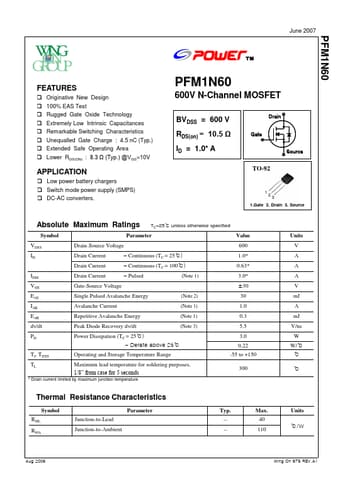

Additional preview pages of the PFM1N60 datasheet.

 Originative New Design  100% EAS Test  Rugged Gate Oxide Technology  Extremely Low Intrinsic Capacitances  Remarkable Switching Characteristics  Unequalled Gate Charge : 4.5 nC (Typ. )  Extended Safe Operating Area  Lower RDS(ON) : 8.3 Ω (Typ. ) @VGS=10V.
