S2000AF - SILICON POWER TRANSISTOR

Description

With TO-3P(H)IS package High voltage Fast switching APPLICATIONS Horizontal deflection for color TV PINNING PIN 1 2 3 DESCRIPTION Base Collector Emitter Fig.1 simplified outline (TO-3P(H)IS) and symbol ABSOLUTE MAXIMUM RATINGS (TC=25 ) SYMBOL VCBO VCEO VEBO IC ICM PC Tj Tstg PAR

📥 Download Datasheet

Datasheet Details

Part number S2000AF
Manufacturer SavantIC
File Size 265.66 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet S2000AF Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
S2000AF High voltage NPN Power transistor ST Microelectronics
S2000AFI HIGH VOLTAGE FAST-SWITCHING NPN POWER TRANSISTOR STMicroelectronics
S2000A Silicon NPN Transistor Toshiba
S2000 Silicon NPN Transistor Toshiba
S2000 NPN Transistor INCHANGE

Other Datasheets by SavantIC

Part Number Description
S2000AF1 SILICON POWER TRANSISTOR
S2000A SILICON POWER TRANSISTOR
S2000 SILICON POWER TRANSISTOR
S2000N SILICON POWER TRANSISTOR
S2055 SILICON POWER TRANSISTOR

Full PDF Text Transcription

Click to expand full text

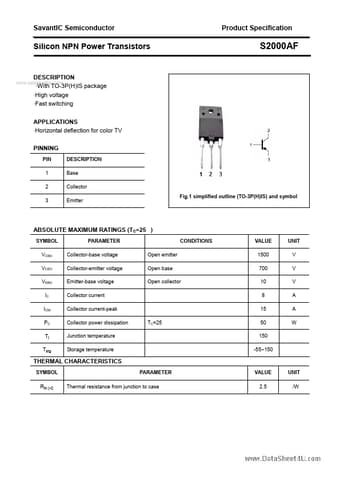

SavantIC Semiconductor Product Specification Silicon NPN Power Transistors S2000AF www.datasheet4u.com DESCRIPTION ·With TO-3P(H)IS package ·High voltage ·Fast switching APPLICATIONS ·Horizontal deflection for color TV PINNING PIN 1 2 3 DESCRIPTION Base Collector Emitter Fig.1 simplified outline (TO-3P(H)IS) and symbol ABSOLUTE MAXIMUM RATINGS (TC=25 ) SYMBOL VCBO VCEO VEBO IC ICM PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector current-peak Collector power dissipation Junction temperature Storage temperature TC=25 Open emitter Open base Open collector CONDITIONS VALUE 1500 700 10 8 15 50 150 -55~150 UNIT V V V A A W THERMAL CHARACTERISTICS SYMBOL Rth j-C PARAMETER Thermal resistance from junction to case VALUE 2.
