BDX37 - SILICON POWER TRANSISTOR

📥 Download Datasheet

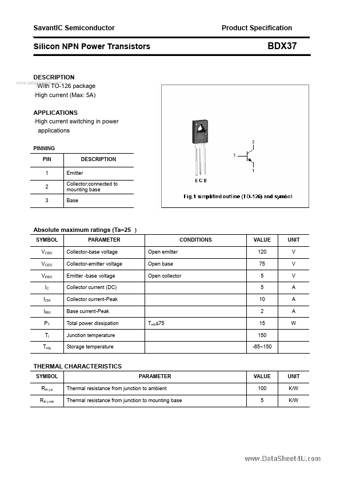

Preview of BDX37 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number BDX37
Manufacturer SavantIC
File Size 138.11 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet BDX37_SavantIC.pdf

BDX37 Product details

Description

With TO-126 package High current (Max: 5A) APPLICATIONS High current switching in power applications PINNING PIN 1 2 3 DESCRIPTION Emitter Collector;connected to mounting base Base Absolute maximum ratings (Ta=25 ) SYMBOL VCBO VCEO VEBO IC ICM IBM PT Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter -base voltage Collector current (DC) Collector current-Peak Base current-Peak Total power dissipation Junction temperature Storage temperature Tmb175 Open emi
