BDX53 - Silicon NPN Power Transistors

SavantIC

📥 Download Datasheet

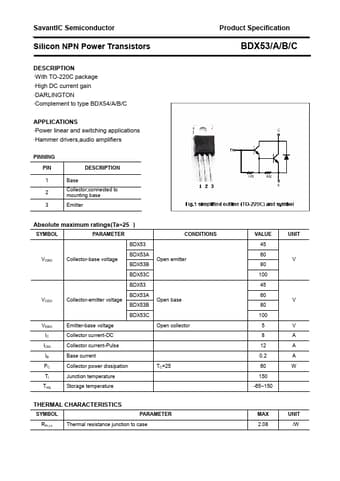

BDX53 Datasheet Preview — Preview of BDX53 PDF

Datasheet Details

Part number	BDX53
Manufacturer	SavantIC
File Size	88.34 KB
Description	Silicon NPN Power Transistors
Datasheet	BDX53-SavantIC.pdf

BDX53 Product details

Description

With TO-220C package High DC current gain DARLINGTON Complement to type BDX54/A/B/C APPLICATIONS Power linear and switching applications Hammer drivers,audio amplifiers PINNING PIN 1 2 3 DESCRIPTION Base Collector;connected to mounting base Emitter Absolute maximum ratings(Ta=25 ) SYMBOL PARAMETER BDX53 VCBO Collector-base voltage BDX53A BDX53B BDX53C BDX53 VCEO BDX53A Collector-emitter voltage BDX53B BDX53C VEBO IC ICM Emitter-base voltage Collecto
