A1129 - Silicon PNP Power Transistors

SavantIC

📥 Download Datasheet

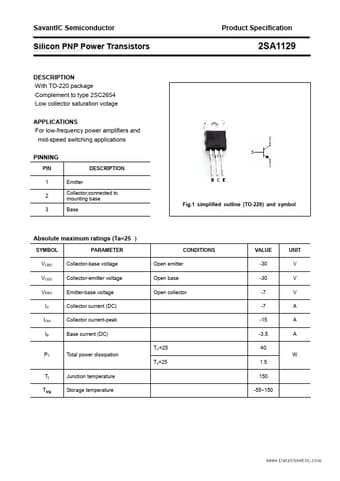

A1129 Datasheet Preview — Preview of A1129 PDF

Datasheet Details

Part number	A1129
Manufacturer	SavantIC
File Size	129.19 KB
Description	Silicon PNP Power Transistors
Datasheet	A1129-SavantIC.pdf

A1129 Product details

Description

With TO-220 package Complement to type 2SC2654 Low collector saturation votage APPLICATIONS For low-frequency power amplifiers and mid-speed switching applications PINNING PIN DESCRIPTION 1 Emitter 2 Collector;connected to mounting base 3 Base Product Specification 2SA1129 Fig.1 simplified outline (TO-220) and symbol Absolute maximum ratings (Ta=25 ) SYMBOL PARAMETER VCBO Collector-base voltage VCEO Collector-emitter voltage VEBO Emitter-base voltage IC Coll
