A1104 - Silicon PNP Power Transistor

SavantIC

📥 Download Datasheet

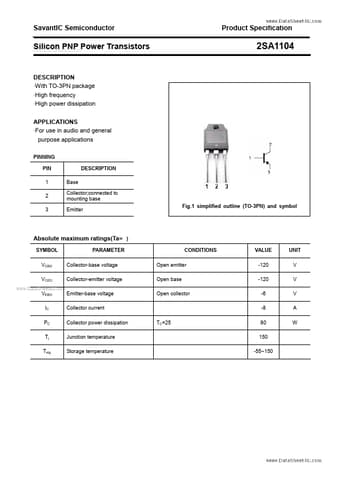

A1104 Datasheet Preview — Preview of A1104 PDF

Datasheet Details

Part number	A1104
Manufacturer	SavantIC
File Size	168.12 KB
Description	Silicon PNP Power Transistor
Datasheet	A1104_SavantIC.pdf

A1104 Product details

Description

With TO-3PN package High frequency High power dissipation APPLICATIONS For use in audio and general purpose applications PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter Fig.1 simplified outline (TO-3PN) and symbol DESCRIPTION Absolute maximum ratings(Ta= ) SYMBOL VCBO VCEO www.DataSheet4U.com PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector power dissipation Junction temperature Storage temperatu
