2SD362 - Silicon NPN Power Transistors

📥 Download Datasheet

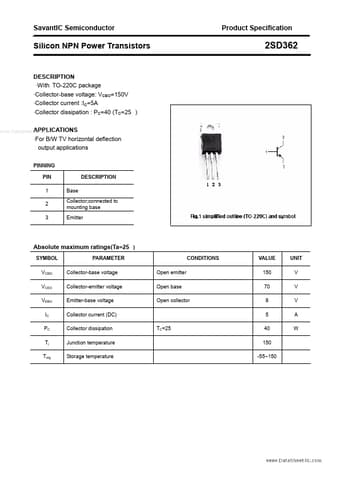

Preview of 2SD362 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number 2SD362
Manufacturer SavantIC
File Size 152.27 KB
Description Silicon NPN Power Transistors
Datasheet download datasheet 2SD362_SavantIC.pdf

2SD362 Product details

Description

With TO-220C package Collector-base voltage: VCBO=150V Collector current :IC=5A Collector dissipation : PC=40 (TC=25 ) APPLICATIONS www.DataSheet4U.com For B/W TV horizontal deflection output applications PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter DESCRIPTION Absolute maximum ratings(Ta=25 ) SYMBOL VCBO VCEO VEBO IC PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current (DC) Collector dissipa
