2SC4507 - SILICON POWER TRANSISTOR

📥 Download Datasheet

Preview of 2SC4507 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number 2SC4507
Manufacturer SavantIC
File Size 230.42 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SC4507_SavantIC.pdf

2SC4507 Product details

Description

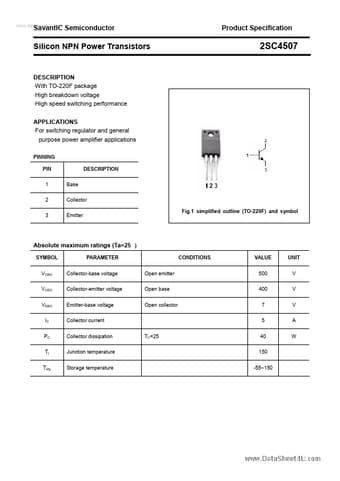

With TO-220F package High breakdown voltage High speed switching performance APPLICATIONS For switching regulator and general purpose power amplifier applications PINNING PIN 1 2 3 Base Collector Emitter Fig.1 simplified outline (TO-220F) and symbol DESCRIPTION Absolute maximum ratings (Ta=25 ) SYMBOL VCBO VCEO VEBO IC PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector dissipation Junction temperature Storag
