2SC4275 - SILICON POWER TRANSISTOR

📥 Download Datasheet

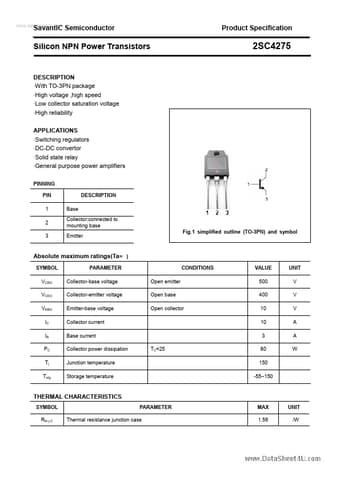

Preview of 2SC4275 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number 2SC4275
Manufacturer SavantIC
File Size 237.93 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SC4275_SavantIC.pdf

2SC4275 Product details

Description

With TO-3PN package High voltage ,high speed Low collector saturation voltage High reliability APPLICATIONS Switching regulators DC-DC convertor Solid state relay General purpose power amplifiers PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter Fig.1 simplified outline (TO-3PN) and symbol DESCRIPTION Absolute maximum ratings(Ta= ) SYMBOL VCBO VCEO VEBO IC IB PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-b
