2SC4278 - SILICON POWER TRANSISTOR

📥 Download Datasheet

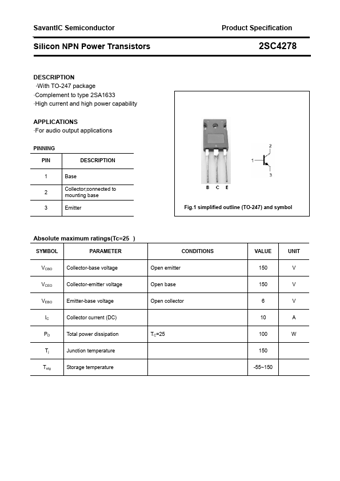

Preview of 2SC4278 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number 2SC4278
Manufacturer SavantIC
File Size 124.69 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SC4278_SavantIC.pdf

2SC4278 Product details

Description

With TO-247 package Complement to type 2SA1633 High current and high power capability APPLICATIONS For audio output applications PINNING PIN DESCRIPTION 1 Base 2 Collector;connected to mounting base 3 Emitter Fig.1 simplified outline (TO-247) and symbol Absolute maximum ratings(Tc=25 ) SYMBOL PARAMETER VCBO Collector-base voltage VCEO Collector-emitter voltage VEBO Emitter-base voltage IC Collector current (DC) PD Total power dissipation Tj Junction temper
