| Part number | 2SC3972A, 2SC3972 |
|---|---|
| Manufacturer | SavantIC |
| File Size | 163.99 KB |
| Description | SILICON POWER TRANSISTOR |
| Datasheet |

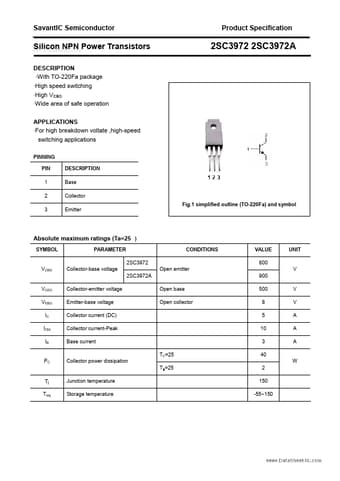

 2SC3972_SavantIC.pdf
|
| Note |
This datasheet PDF includes multiple part numbers: 2SC3972A, 2SC3972. Please refer to the document for exact specifications by model. |
With TO-220Fa package High speed switching High VCBO Wide area of safe operation APPLICATIONS For high breakdown voltate ,high-speed switching applications PINNING PIN 1 2 3 DESCRIPTION Base Collector Emitter Fig.1 simplified outline (TO-220Fa) and symbol Absolute maximum ratings (Ta=25 ) SYMBOL PARAMETER 2SC3972 VCBO Collector-base voltage 2SC3972A VCEO VEBO IC ICM IB Collector-emitter voltage Emitter-base voltage Collector current (DC) Collector current-Peak Base curr
