2SC3907 - SILICON POWER TRANSISTOR

Description

With TO-3P(I) package Complement to type 2SA1516 APPLICATIONS Audio and general purpose power amplifier applications Recommend for 80W high fidelity audio frequency amplifier output stage PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter DESCRIPTION 2SC3907 Fi

📥 Download Datasheet

Datasheet Details

Part number 2SC3907
Manufacturer SavantIC
File Size 152.54 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SC3907 Datasheet

📁 Similar Datasheet

  • 2SC3907 - NPN Transistor (INCHANGE)
  • 2SC3907S - NPN Transistor (INCHANGE)
  • 2SC3900 - Epitaxial Planar Silicon Transistor (Sanyo)
  • 2SC3901 - PNP / NPN EPITAXIAL PLANAR SILICON TRANSISTORS (Sanyo)
  • 2SC3901 - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
  • 2SC3902 - PNP/NPN Transistors (Sanyo Semicon Device)
  • 2SC3902 - Bipolar Transistor (ON Semiconductor)
  • 2SC3902 - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
  • 2SC3902 - NPN Transistor (INCHANGE)
  • 2SC3904 - Silicon NPN Transistor (Panasonic Semiconductor)
Other Datasheets by SavantIC

Full PDF Text Transcription

Click to expand full text

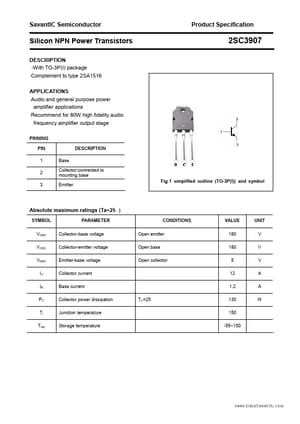

SavantIC Semiconductor www.DataSheet4U.com Product Specification Silicon NPN Power Transistors DESCRIPTION ·With TO-3P(I) package ·Complement to type 2SA1516 APPLICATIONS ·Audio and general purpose power amplifier applications ·Recommend for 80W high fidelity audio frequency amplifier output stage PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter DESCRIPTION 2SC3907 Fig.1 simplified outline (TO-3P(I)) and symbol Absolute maximum ratings (Ta=25 ) SYMBOL VCBO VCEO VEBO IC IB PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collector power dissipation Junction temperature Storage temperature TC=25 CONDITIONS Open emitter Open base Open collector VALUE 180 180 5 12 1.
