2SC3300 - SILICON POWER TRANSISTOR

📥 Download Datasheet

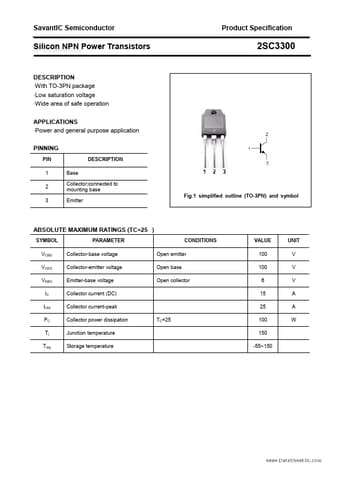

Preview of 2SC3300 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number 2SC3300
Manufacturer SavantIC
File Size 159.46 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SC3300_SavantIC.pdf

2SC3300 Product details

Description

With TO-3PN package Low saturation voltage Wide area of safe operation APPLICATIONS Power and general purpose application PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter Fig.1 simplified outline (TO-3PN) and symbol DESCRIPTION ABSOLUTE MAXIMUM RATINGS (TC=25 ) SYMBOL VCBO VCEO VEBO IC ICM PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current (DC) Collector current-peak Collector power dissipation Junc
