2SC2336B, 2SC2336 - SILICON POWER TRANSISTOR

The 2SC2336B by SavantIC is a SILICON POWER TRANSISTOR. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the 2SC2336B SILICON POWER TRANSISTOR datasheet (SavantIC).

Datasheet Details

Part number 2SC2336B, 2SC2336
Manufacturer SavantIC
File Size 163.17 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SC2336_SavantIC.pdf
Note This datasheet PDF includes multiple part numbers: 2SC2336B, 2SC2336.
Please refer to the document for exact specifications by model.

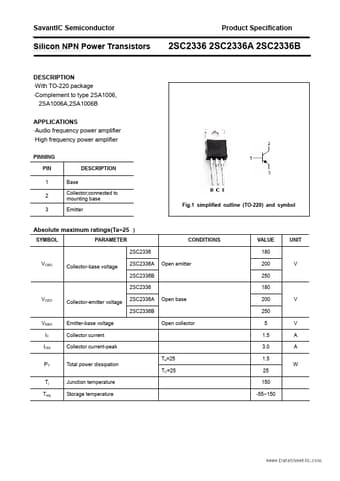

Additional preview pages of the 2SC2336B datasheet.

2SC2336B Product details

Description

With TO-220 package Complement to type 2SA1006, 2SA1006A,2SA1006B APPLICATIONS Audio frequency power amplifier High frequency power amplifier PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter Fig.1 simplified outline (TO-220) and symbol DESCRIPTION Absolute maximum ratings(Ta=25 ) SYMBOL PARAMETER 2SC2336 VCBO Collector-base voltage 2SC2336A 2SC2336B 2SC2336 VCEO Collector-emitter voltage 2SC2336A 2SC2336B VEBO IC ICM PT Tj Tstg Emitter-base voltage Collect
